iCH12012A007V-006-R - TDK Lambda

Description: DC-DC Converters, On-board type, Output: 85W, 0.7V, Non-Isolated type

Download iCH12012A007V-006-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

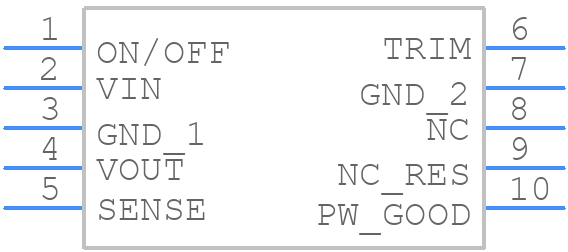

Symbol
iCH12012A007V-006-R - TDK Lambda - PCB symbol
click to zoom
PCB Footprints
iCH12012A007V-006-R - TDK Lambda PCB footprint - Other - Other - iCH12012A007V-006-R-3
click to zoom
3D Models
iCH12012A007V-006-R - TDK Lambda - 3D model - Other - iCH12012A007V-006-R-3
click to zoom

iCH12012A007V-006-R Details

  • Manufacturer Part Number:

    ICH12012A007V-006-R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    MODULE

  • Package Description:

    SMT-14/12

  • Pin Count:

    14/12

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XXMA-N12

  • Length:

    12.2 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Output Voltage-Max:

    8.5 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    85 W

  • Trim/Adjustable Output:

    YES

  • Width:

    12.2 mm

iCH12012A007V-006-R Frequently Asked Questions (FAQs)

  • TDK-Lambda recommends a PCB layout with a solid copper ground plane and thermal vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Yes, the ICH12012A007V-006-R is designed to meet the vibration requirements of IEC 60068-2-6, but it's recommended to consult with TDK-Lambda's application engineers for specific vibration profiles and mounting recommendations.
  • TDK-Lambda recommends following the guidelines in the datasheet for input and output filtering, and ensuring that the converter is installed in a shielded enclosure to minimize EMI radiation.
  • The maximum allowable capacitance on the output is 2200uF, but it's recommended to consult with TDK-Lambda's application engineers for specific output capacitance requirements and stability considerations.
  • Yes, the ICH12012A007V-006-R can be paralleled for higher power output, but it's recommended to consult with TDK-Lambda's application engineers for specific design and layout recommendations to ensure proper current sharing and thermal management.
