Part Image

iCH12012A007V-007-R - TDK Lambda

Description: DC-DC Converters, On-board type, Output: 85W, 0.7V, Non-Isolated type

Download iCH12012A007V-007-R Model

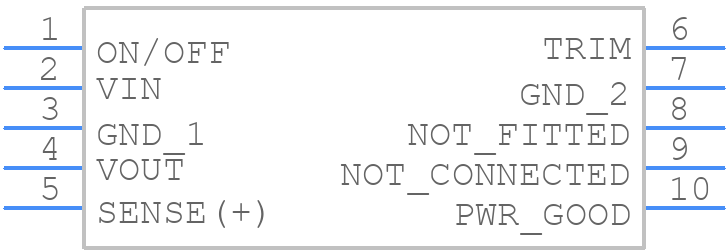

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
iCH12012A007V-007-R - TDK Lambda PCB footprint - Other - Other - ICH12012A007V-007-R-1
click to zoom
3D Models
iCH12012A007V-007-R - TDK Lambda  - 3D model - Other - ICH12012A007V-007-R-1
click to zoom

iCH12012A007V-007-R Details

  • Manufacturer Part Number:

    ICH12012A007V-007-R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    MODULE

  • Package Description:

    SMT-14/12

  • Pin Count:

    14/12

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XXMA-N12

  • Length:

    12.2 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Output Voltage-Max:

    8.5 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    85 W

  • Trim/Adjustable Output:

    YES

  • Width:

    12.2 mm

iCH12012A007V-007-R Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the DC-DC converter near a metal edge of the PCB, using a solid copper plane for heat dissipation, and ensuring good airflow around the component.
  • To ensure EMC, use a metal enclosure, keep the module away from sensitive circuits, use shielded cables, and follow proper grounding and shielding techniques.
  • The derating curve is typically provided in the datasheet or can be obtained from the manufacturer. It shows the reduction in output power as a function of temperature, and it's essential to consider this when designing the system to ensure reliable operation.
  • Yes, this module can be used in high-vibration environments, but it's essential to ensure the module is securely fastened to the PCB, and the PCB is properly secured to the chassis. Additionally, consider using vibration-dampening materials and following the manufacturer's guidelines for vibration testing.
  • The recommended input and output capacitors are typically listed in the datasheet or can be obtained from the manufacturer. These capacitors are crucial for filtering, decoupling, and ensuring stable operation. They help to reduce noise, ripple, and electromagnetic interference (EMI).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

iCH12012A007V-007-R Overview

Use the download button to access the iCH12012A007V-007-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like iCH12, or try a keyword search, such as Power Supply Modules
