ICL3207CAZ - Renesas Electronics

Description: The ICL3207 is a 3. 0V to 5. 5V powered RS-232 transmitter/receiver that meets ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. The ICL3207 features five transmitters and three receivers. Targeted applications are ISDN Terminal Adapters (TAs), PDAs, Palmtops, peripherals, and notebook and laptop computers where the low operational power and even lower standby power consumption is critical. Small footprint packaging and the use of small, low value capacitors ensure board space savings. Data r

Download ICL3207CAZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

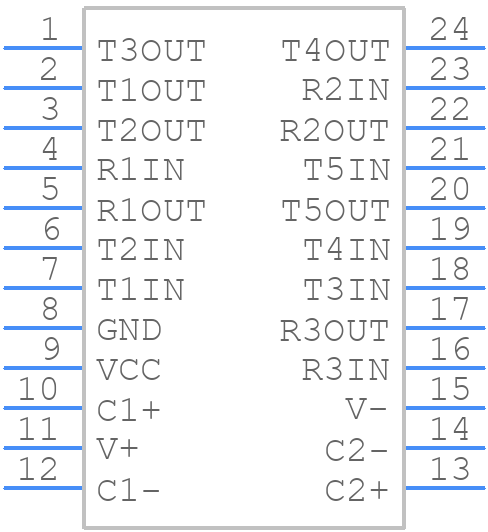

ICL3207CAZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ICL3207CAZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M24.209 (JEDEC MO-150-AG ISSUE B) 24 LEAD SHRINK SMALL OUTLINE PLASTIC PACKAGE
click to zoom
3D Models
ICL3207CAZ - Renesas Electronics - 3D model - Small Outline Packages - M24.209 (JEDEC MO-150-AG ISSUE B) 24 LEAD SHRINK SMALL OUTLINE PLASTIC PACKAGE
click to zoom

ICL3207CAZ Details

  • Manufacturer Part Number:

    ICL3207CAZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    M24.209

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Differential Output:

    NO

  • Driver Number of Bits:

    5

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    8.2 mm

  • Number of Functions:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

ICL3207CAZ Frequently Asked Questions (FAQs)

  • Renesas recommends a compact layout with short traces, and placing the device close to the power source. Additionally, a ground plane under the device and a shield around the circuit can help reduce EMI and noise.
  • Follow the recommended biasing and configuration guidelines in the datasheet, and ensure that the input and output capacitors are properly selected and placed. Also, verify that the device is operated within the recommended operating conditions.
  • The ICL3207CAZ has a thermal shutdown feature that turns off the device when it exceeds the maximum junction temperature. Ensure good thermal conductivity between the device and the PCB, and consider using a heat sink or thermal pad if necessary.
  • Yes, the ICL3207CAZ is designed for high-reliability applications and meets various industry standards for safety and reliability. However, it's essential to follow Renesas' guidelines for design, testing, and validation to ensure the device meets the specific requirements of the application.
  • Use a combination of visual inspection, signal analysis, and debugging techniques to identify the root cause of the issue. Check for proper power supply, biasing, and configuration, and verify that the device is operated within the recommended operating conditions.
