A good PCB layout for the ICL3222CPZ involves keeping the signal traces short, using a solid ground plane, and placing the device close to the connector. Additionally, it's recommended to use a shielded cable and to keep the cable length as short as possible to minimize EMI.
To ensure reliable operation of the ICL3222CPZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range.
The maximum cable length that can be used with the ICL3222CPZ depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep the cable length as short as possible to minimize signal attenuation and EMI. A good starting point is to use a cable length of 1-2 meters, and then test the system to ensure reliable operation.
To troubleshoot issues with the ICL3222CPZ, start by checking the power supply voltage, signal integrity, and cable connections. Use an oscilloscope to verify the signal waveform and check for any signs of signal degradation or noise. Also, review the system design and ensure that it meets the recommended operating conditions and layout guidelines.
The ICL3222CPZ is designed for low-to-moderate speed data transmission, up to 1 Mbps. While it can be used in some high-speed applications, it may not be the best choice for very high-speed applications like USB or Ethernet, which require much faster data transmission rates. In such cases, a more specialized transceiver chip may be required.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3222CPZ Overview

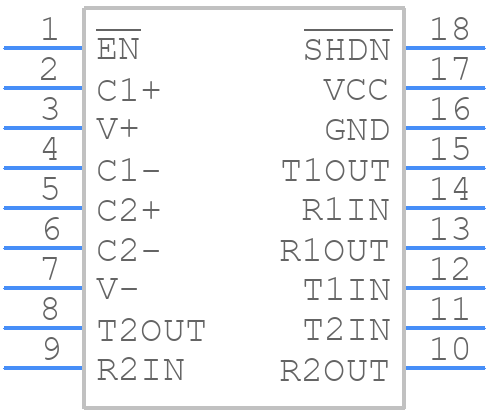

Use the download button to access the ICL3222CPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32,
or try a keyword search, such as Line Driver or Receivers
