Description:The ICL3221, ICL3222, ICL3223, ICL3232, ICL3241, ICL3243 (ISL32xx) devices are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Targeted applications are PDAs, notebook, and laptop computers where the low operational power consumption and even lower standby power consumption are critical. Efficient on-chip charge pumps, coupled with manual and automatic power-down functions (except for the ICL3232), reduce the standby supply curr
A good PCB layout for the ICL3222CVZ-T involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass capacitor.
To ensure reliable operation of the ICL3222CVZ-T in high-temperature environments, it's essential to follow proper thermal design guidelines, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range.
The ICL3222CVZ-T is designed to be EMI-resistant, but it's still important to follow proper EMI mitigation techniques, such as using shielding, filtering, and grounding, to ensure reliable operation in high-EMI environments.
While the ICL3222CVZ-T is specified for 3.3V operation, it can operate from a 2.7V to 5.5V supply voltage. However, the device's performance and power consumption may vary depending on the supply voltage, so it's essential to consult the datasheet and perform thorough testing before using the device in a system with a non-standard supply voltage.
To troubleshoot issues with the ICL3222CVZ-T, start by verifying the device's power supply and clock signals, then check the transmission line integrity and signal quality. Use oscilloscopes and logic analyzers to capture and analyze the signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3222CVZ-T Overview

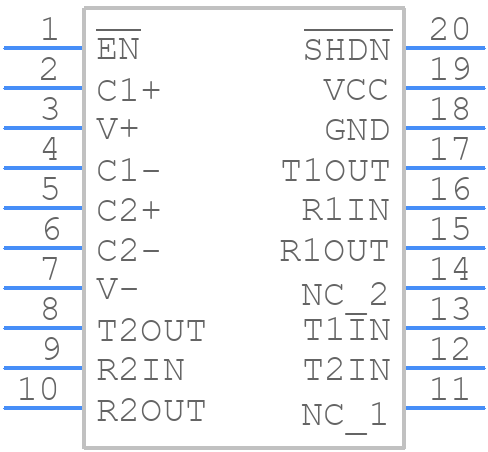

Use the download button to access the ICL3222CVZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32,
or try a keyword search, such as Line Driver or Receivers
