Description:The ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, and ICL3243E are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical. Effici
A good PCB layout for the ICL3222ECAZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to place the device close to the power supply and use a decoupling capacitor between the VCC and GND pins.
To ensure reliable communication with the ICL3222ECAZ in noisy environments, use a shielded cable, keep the cable length as short as possible, and use a common mode choke or ferrite bead to filter out electromagnetic interference (EMI). Additionally, consider using a transceiver with built-in noise filtering and error correction capabilities.
The maximum cable length supported by the ICL3222ECAZ depends on the baud rate and the type of cable used. As a general guideline, the maximum cable length is approximately 1000 feet (305 meters) at 9600 bps, 500 feet (152 meters) at 19,200 bps, and 200 feet (61 meters) at 38,400 bps.
To troubleshoot issues with the ICL3222ECAZ, start by checking the power supply voltage, ensuring that it is within the recommended range. Next, verify that the device is properly configured and that the transmit and receive lines are properly connected. Use a logic analyzer or oscilloscope to monitor the signal lines and identify any errors or anomalies.
Yes, the ICL3222ECAZ can be used in hot-swappable applications. However, it's essential to ensure that the device is properly powered down before the hot-swap event and that the power supply is stable before re-enabling the device. Additionally, consider using a hot-swap controller or a power switch to ensure a clean power-up sequence.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3222ECAZ Overview

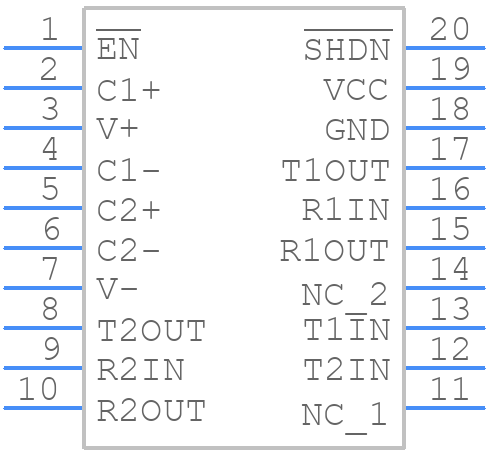

Use the download button to access the ICL3222ECAZ schematic symbol, PCB footprint, and 3D model.
