Description:The ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, and ICL3243E are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical. Effici
A good PCB layout for the ICL3222ECVZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device close to the power supply and use a low-ESR capacitor for the VCC pin.
To ensure reliable operation of the ICL3222ECVZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range (-40°C to +85°C).
The ICL3222ECVZ is capable of supporting data rates up to 1 Mbps, making it suitable for a wide range of applications, including industrial control systems, medical devices, and consumer electronics.
To troubleshoot issues with the ICL3222ECVZ, start by verifying the power supply voltage and ensuring that it's within the specified range. Check the device's operating temperature and ensure that it's within the specified range. Also, review the PCB layout and ensure that it's following the recommended guidelines. If the issue persists, consult the device's datasheet and application notes for further guidance.
The ICL3222ECVZ is designed to operate from a 5V power supply, but it can also be used with 3.3V or 2.5V power supplies with some limitations. However, the device's performance and functionality may be affected, and the user should consult the datasheet and application notes for specific guidance on using the device with lower voltage power supplies.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3222ECVZ Overview

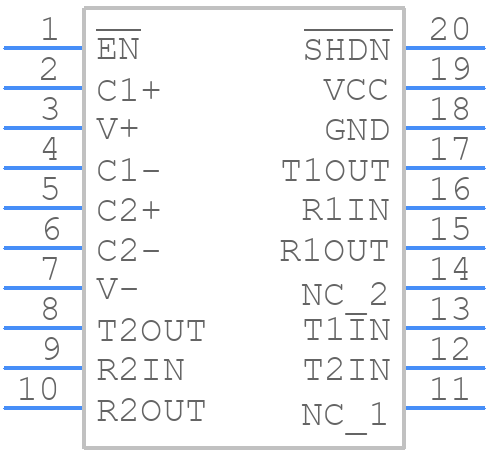

Use the download button to access the ICL3222ECVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32,
or try a keyword search, such as Line Driver or Receivers
