Description:The ICL3221, ICL3222, ICL3223, ICL3232, ICL3241, ICL3243 (ISL32xx) devices are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Targeted applications are PDAs, notebook, and laptop computers where the low operational power consumption and even lower standby power consumption are critical. Efficient on-chip charge pumps, coupled with manual and automatic power-down functions (except for the ICL3232), reduce the standby supply curr
A good PCB layout for the ICL3222IAZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the ICL3222IAZ-T, use a high-quality decoupling capacitor (e.g., 0.1uF) as close to the VCC pin as possible, and consider adding a 10uF capacitor in parallel to filter out noise. Also, ensure a stable power supply with minimal ripple and noise.
The ICL3222IAZ-T can support data rates up to 1Mbps, but the actual achievable data rate depends on the specific application, cable length, and noise environment. In general, it's recommended to limit the data rate to 500kbps or less for reliable operation.
To protect the ICL3222IAZ-T from electrostatic discharge (ESD), use ESD protection devices such as TVS diodes or ESD arrays on the I/O lines, and ensure that the PCB design includes a solid ground plane and a dedicated ESD protection network.
The ICL3222IAZ-T has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device within the recommended operating temperature range (–40°C to 85°C) and provide adequate heat sinking and airflow in the system design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3222IAZ-T Overview

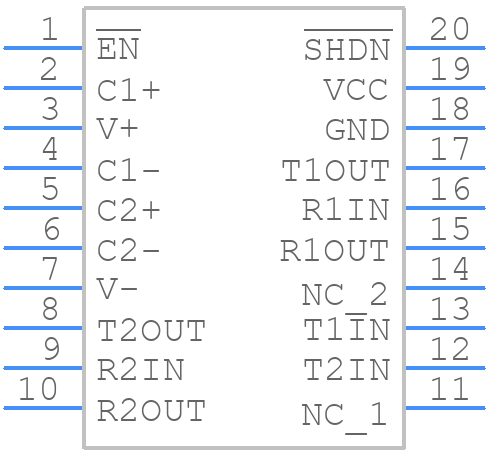

Use the download button to access the ICL3222IAZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32,
or try a keyword search, such as Line Driver or Receivers
