Description:The ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, and ICL3243E are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical. Effici
Renesas recommends following a star-grounding topology, keeping the analog and digital grounds separate, and using a solid ground plane to minimize EMI and noise. Additionally, keep the signal traces short and away from the power traces, and use shielding if possible.
Ensure good thermal design and heat dissipation by providing adequate airflow, using a heat sink if necessary, and keeping the device away from heat sources. Also, follow the recommended PCB layout and thermal pad connection guidelines.
Renesas recommends powering up the VCC pin first, followed by the VEE pin, and then the digital inputs. This sequence helps prevent latch-up and ensures proper device operation.
The ICL3223ECAZ has built-in input overvoltage protection, but it's still recommended to add external protection circuitry, such as TVS diodes or resistors, to prevent damage from voltage spikes or surges.
Renesas recommends using a logic analyzer or oscilloscope to monitor the device's digital outputs and analog inputs. Additionally, use a signal generator to test the device's input signals and verify its operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3223ECAZ Overview

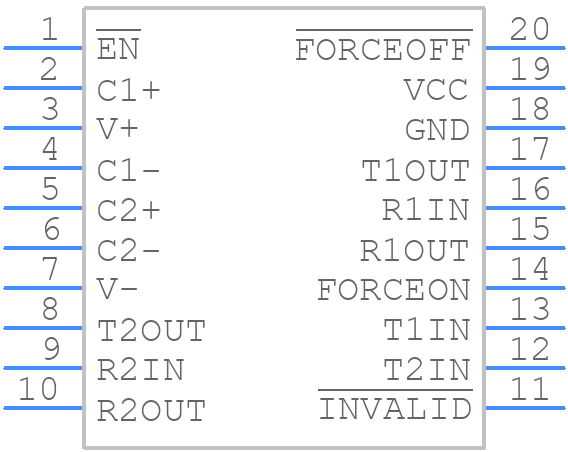

Use the download button to access the ICL3223ECAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32,
or try a keyword search, such as Line Driver or Receivers
