Description:The ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, and ICL3243E are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical. Effici
A good PCB layout for the ICL3223EIVZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to place the device close to the power supply and use a decoupling capacitor between the VCC and GND pins.
To ensure reliable communication with the ICL3223EIVZ in a noisy environment, use a shielded cable, keep the cable length as short as possible, and use a common mode choke or ferrite bead to filter out electromagnetic interference (EMI). Additionally, consider using a transceiver with built-in EMI filtering, such as the ICL3223EIVZ, which has a built-in electromagnetic interference (EMI) filter.
The maximum cable length supported by the ICL3223EIVZ depends on the baud rate and the type of cable used. As a general guideline, the maximum cable length for a baud rate of 115.2 kbps is approximately 100 meters (330 feet) using a 24 AWG twisted pair cable.
To troubleshoot issues with the ICL3223EIVZ, start by checking the power supply voltage, ensuring it is within the recommended range. Verify that the device is properly configured and that the transmit and receive lines are properly connected. Use a logic analyzer or oscilloscope to monitor the signal lines and check for errors. Consult the datasheet and application notes for troubleshooting guides and FAQs.
Yes, the ICL3223EIVZ is designed to support hot-swapping, which allows the device to be inserted or removed from a system without powering down the system. However, ensure that the system is designed to handle the inrush current and voltage transients associated with hot-swapping.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3223EIVZ Overview

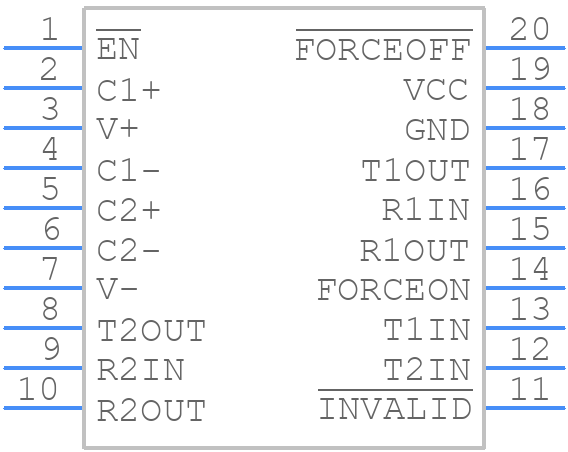

Use the download button to access the ICL3223EIVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32,
or try a keyword search, such as Line Driver or Receivers
