Description:The ICL3221, ICL3222, ICL3223, ICL3232, ICL3241, ICL3243 (ISL32xx) devices are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Targeted applications are PDAs, notebook, and laptop computers where the low operational power consumption and even lower standby power consumption are critical. Efficient on-chip charge pumps, coupled with manual and automatic power-down functions (except for the ICL3232), reduce the standby supply curr
A good PCB layout for ICL3223IVZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the signal traces short and direct.
To ensure reliable operation of ICL3223IVZ-T in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range (-40°C to +85°C).
ICL3223IVZ-T has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and avoiding direct contact with the device pins.
Yes, ICL3223IVZ-T is a low-power device with a typical quiescent current of 1.5mA. It's suitable for battery-powered or low-power applications. However, it's essential to follow proper power management techniques, such as using a low-dropout regulator and optimizing the system's power consumption.
To troubleshoot issues with ICL3223IVZ-T, start by verifying the device's pin connections and ensuring that the input and output voltages are within the specified ranges. Check for any signs of overheating, and verify that the device is operated within its specified temperature range. Use an oscilloscope to monitor the output voltage and look for any signs of oscillation or ringing. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3223IVZ-T Overview

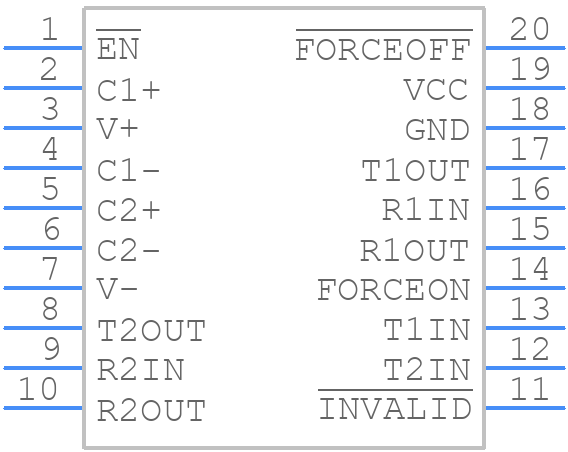

Use the download button to access the ICL3223IVZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32,
or try a keyword search, such as Line Driver or Receivers
