Description:The ICL3224E, ICL3226E, and ICL3244E devices are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. They provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and notebook and laptop computers where the low operational power and even lower standby power consumption are critical. Efficient on-chip charge pumps coupl
A good PCB layout for the ICL3226EIAZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device close to the power supply and use a low-ESR capacitor for the VCC pin.
To ensure reliable operation of the ICL3226EIAZ-T in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range (-40°C to +85°C).
Using a lower value capacitor connected to the VCC pin may result in increased noise sensitivity and reduced power supply rejection ratio (PSRR). On the other hand, using a higher value capacitor may increase the startup time and reduce the overall efficiency of the device. The recommended value is 10uF, as specified in the datasheet.
To troubleshoot issues with the ICL3226EIAZ-T, start by verifying the power supply voltage, checking for proper connections and soldering, and ensuring that the device is operated within its specified temperature range. Use an oscilloscope to monitor the output voltage and check for any signs of oscillation or noise. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, when designing with the ICL3226EIAZ-T, it's essential to follow proper EMI/EMC design practices, such as using a shielded enclosure, keeping the device away from radiating sources, and using EMI filters or shielding on the input and output lines. Additionally, ensure that the device is operated within its specified frequency range and follow the recommended layout guidelines to minimize radiated emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3226EIAZ-T Overview

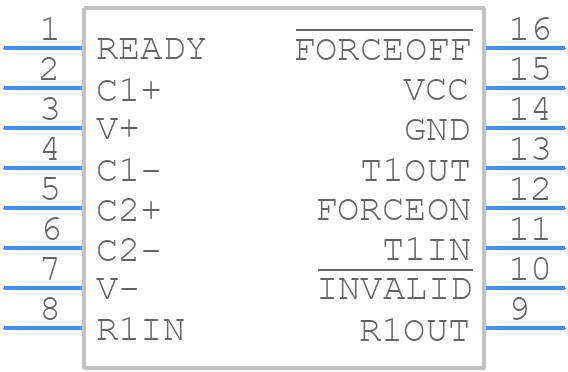

Use the download button to access the ICL3226EIAZ-T schematic symbol, PCB footprint, and 3D model.
