Description:The ICL3225E, ICL3227E, and ICL3245E devices are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. They provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and notebook and laptop computers where the low operational power consumption and even lower standby power consumption are critical. Efficient on-chip charge
A good PCB layout for the ICL3227EIAZA involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the ICL3227EIAZA, use a high-quality power supply with low ripple and noise, and add decoupling capacitors (e.g., 0.1uF and 10uF) as close to the device as possible. Also, use a 10kΩ resistor in series with the VCC pin to prevent voltage spikes.
The ICL3227EIAZA can achieve data rates of up to 1Mbps in asynchronous mode and up to 3Mbps in synchronous mode, depending on the specific application and system design.
The ICL3227EIAZA has built-in error detection and correction mechanisms, such as parity and checksum checks. In addition, implement error handling routines in your firmware to detect and recover from errors, such as timeouts, framing errors, and overrun errors.
The ICL3227EIAZA is rated for operation from -40°C to +85°C, but it's essential to consider the specific environmental requirements of your application and ensure the device is properly packaged and protected to withstand harsh conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3227EIAZA Overview

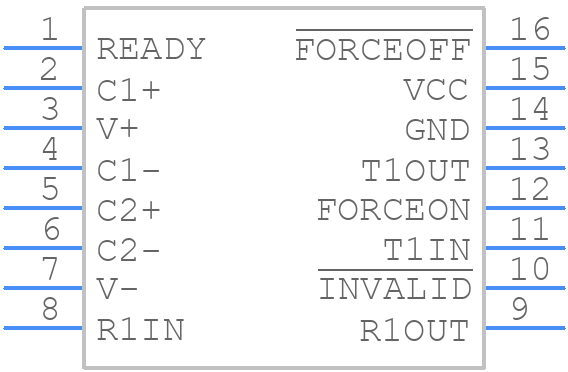

Use the download button to access the ICL3227EIAZA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32,
or try a keyword search, such as Line Driver or Receivers
