ICL3232ECV-20ZT footprint, schematic symbol and 3D model by Renesas Electronics

ICL3232ECV-20ZT - Renesas Electronics

Description: The ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, and ICL3243E are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical. Effici

Download ICL3232ECV-20ZT Model

Schematic
symbols

PCB
footprints

3D
models

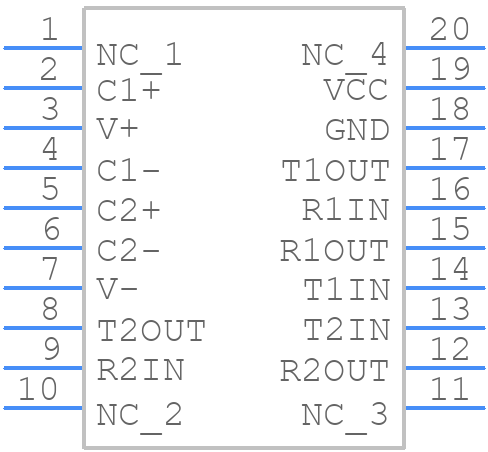

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ICL3232ECV-20ZT
Part Number ICL3232ECV-20ZT
Manufacturer Renesas Electronics
Pin Count 20
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - M20.173
Released Date Mar 17, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

ICL3232ECV-20ZT Details

Manufacturer Part Number:
ICL3232ECV-20ZT
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ICL3232ECV-20ZT Overview

Use the download button to access the ICL3232ECV-20ZT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ICL32, or try a keyword search, such as Line Driver or Receivers
