Description:The ICL3237E contains 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. It provides ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are cell phones, PDAs, Palmtops, and notebook and laptop computers where the low operational power and even lower standby power consumption is critical. Efficient on-chip charge pumps coupled with the manu
A good PCB layout for the ICL3237EIAZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the device's pins. Additionally, it's recommended to place the device close to the power supply and use decoupling capacitors to reduce noise.
To ensure proper termination, it's recommended to use a 100-ohm differential termination resistor at the receiver end, and to match the transmission line impedance to the device's output impedance. Additionally, using a common-mode choke or a transformer can help to reduce electromagnetic interference (EMI).
The maximum cable length supported by the ICL3237EIAZ-T depends on the data rate and the type of cable used. As a general guideline, the device can support cable lengths of up to 100 meters at data rates of up to 100 Mbps, and up to 50 meters at data rates of up to 400 Mbps.
To handle hot swapping with the ICL3237EIAZ-T, it's recommended to use a hot swap controller or a power switch with overcurrent protection to prevent damage to the device. Additionally, the device's power supply should be designed to handle the inrush current during hot swapping.
The ICL3237EIAZ-T has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. The device can withstand ESD pulses of up to ±8 kV according to the IEC 61000-4-2 standard.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3237EIAZ-T Overview

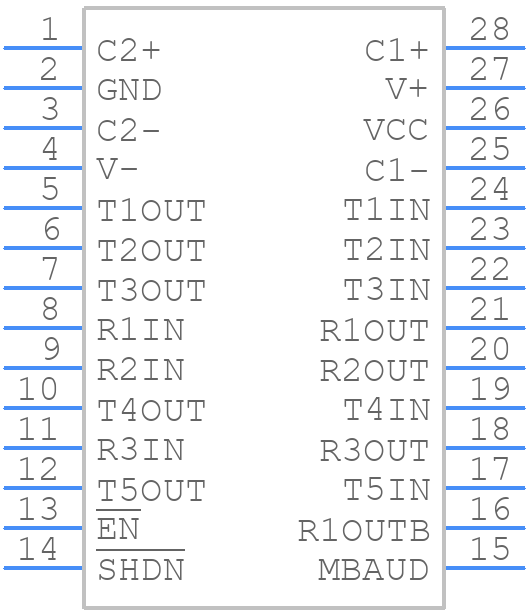

Use the download button to access the ICL3237EIAZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32,
or try a keyword search, such as Line Driver or Receivers
