Description:The ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, and ICL3243E are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical. Effici
A good PCB layout for ICL3241ECAZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the device and the bypass capacitors. Additionally, it's recommended to use a Kelvin connection for the VCC and GND pins to reduce noise and improve performance.
To ensure the ICL3241ECAZ operates within its recommended operating conditions, it's essential to follow the guidelines in the datasheet for voltage, current, and temperature. This includes keeping the supply voltage within the recommended range (4.5V to 5.5V), limiting the output current to 1mA, and operating the device within the recommended temperature range (-40°C to 85°C).
When selecting bypass capacitors for ICL3241ECAZ, it's essential to choose capacitors with low equivalent series resistance (ESR) and high frequency response. A 0.1uF ceramic capacitor is a good starting point, but the optimal value may vary depending on the specific application and PCB layout. It's also recommended to place the bypass capacitors as close as possible to the device's power pins.
To troubleshoot issues with the ICL3241ECAZ, start by verifying the PCB layout and ensuring that the device is properly connected and powered. Check the input and output voltages using an oscilloscope or multimeter, and verify that the device is operating within its recommended operating conditions. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and debugging.
Yes, the ICL3241ECAZ is a high-frequency device, and as such, it's essential to take EMI/EMC considerations into account during the design process. This includes using shielding, filtering, and grounding techniques to minimize electromagnetic interference and ensure compliance with relevant regulatory standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3241ECAZ Overview

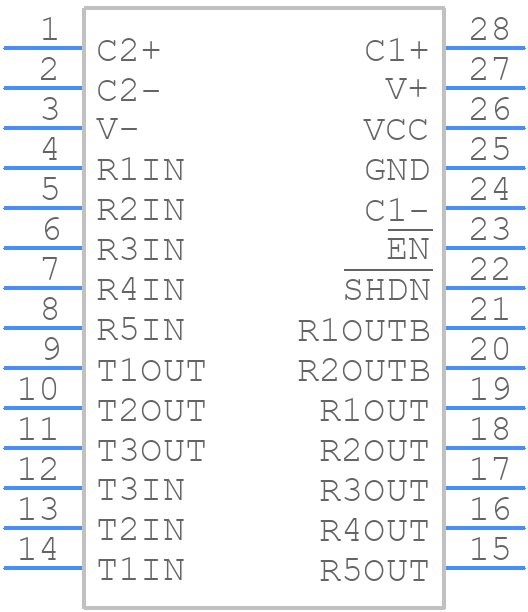

Use the download button to access the ICL3241ECAZ schematic symbol, PCB footprint, and 3D model.
