Description:The ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, and ICL3243E are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical. Effici
A good PCB layout for the ICL3241EIAZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and load. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the ICL3241EIAZ operates within its recommended operating conditions, make sure to operate it within the specified voltage range (3.0V to 5.5V), keep the junction temperature below 125°C, and avoid exceeding the maximum ratings for the input and output currents.
For thermal management, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, consider the thermal resistance of the PCB and the device's power dissipation to prevent overheating.
To troubleshoot issues with the ICL3241EIAZ, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input and output capacitors are properly connected and of the correct value. Also, check for any noise or interference on the input or output lines, and ensure the device is properly decoupled.
The ICL3241EIAZ's quiescent current is typically around 1.5mA. This can impact the overall power consumption of your system, especially in battery-powered applications. Consider the quiescent current when calculating the total power consumption and designing your system's power management strategy.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3241EIAZ Overview

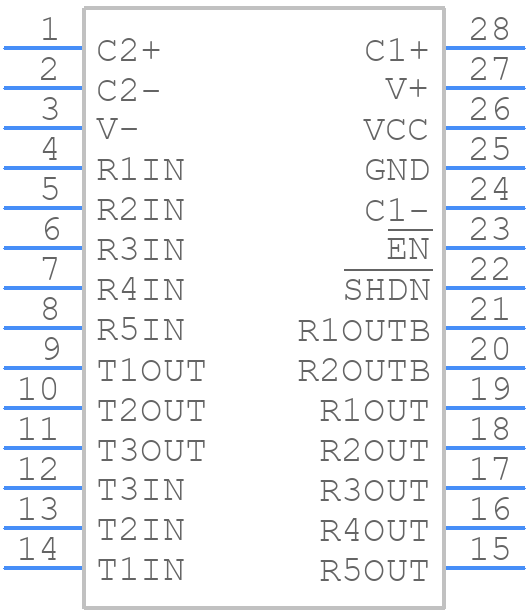

Use the download button to access the ICL3241EIAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32,
or try a keyword search, such as Line Driver or Receivers
