ICL7106CM44Z - Renesas Electronics

Description: The Intersil ICL7106 and ICL7107 are high performance, low power, 31/2 digit A/D converters. Included are seven segment decoders, display drivers, a reference, and a clock. The ICL7106 is designed to interface with a liquid crystal display (LCD) and includes a multiplexed backplane drive; the ICL7107 will directly drive an instrument size light emitting diode (LED) display. The ICL7106 and ICL7107 bring together a combination of high accuracy, versatility, and true economy. It features autozero to less than

Download ICL7106CM44Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

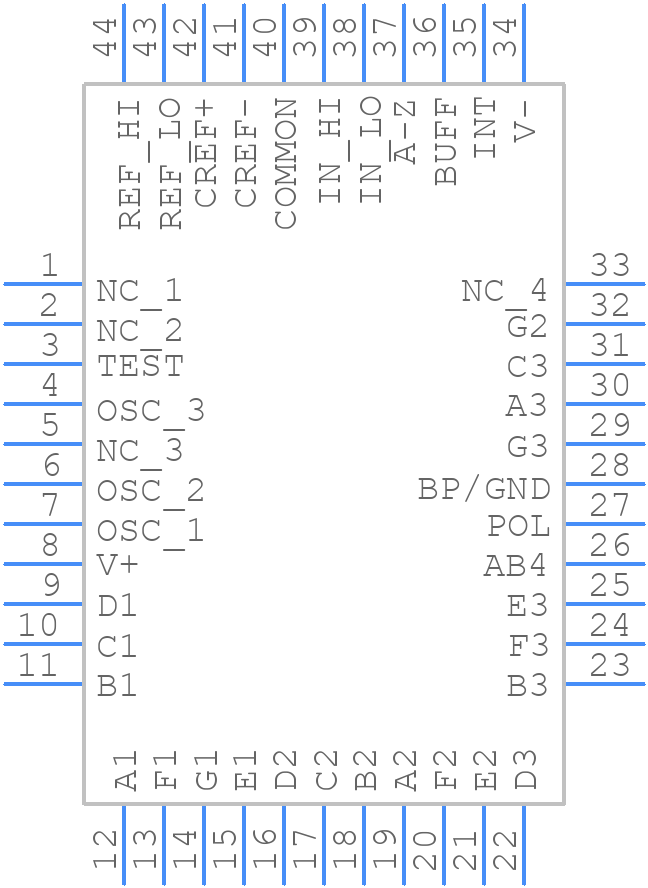

ICL7106CM44Z - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

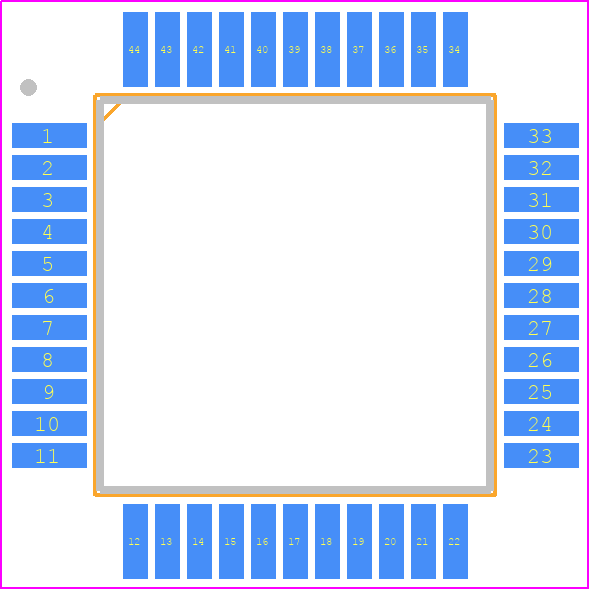

ICL7106CM44Z - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - Q44.10x10-1
click to zoom
3D Models
ICL7106CM44Z - Renesas Electronics - 3D model - Quad Flat Packages - Q44.10x10-1
click to zoom

ICL7106CM44Z Details

  • Manufacturer Part Number:

    ICL7106CM44Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MQFP

  • Pin Count:

    44

  • Manufacturer Package Code:

    Q44.10X10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Converter Type:

    A/D CONVERTER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Supply Current-Max:

    1.8 mA

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

ICL7106CM44Z Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog input signals. This ensures proper operation and prevents damage to the device.
  • To ensure accurate voltage measurement, it is essential to use a low-impedance voltage source, minimize noise and interference, and use a high-precision voltage reference. Additionally, calibrate the device according to the datasheet recommendations.
  • The maximum input voltage that the ICL7106CM44Z can handle is 30V. Exceeding this voltage may damage the device.
  • The ICL7106CM44Z can be interfaced with a microcontroller using a 3-wire serial interface (SCLK, DIN, and DOUT). The microcontroller can send commands and read data from the ICL7106CM44Z using this interface.
  • The VREF pin is used to provide an external voltage reference for the device. This allows the user to set the full-scale range of the analog-to-digital converter (ADC) and improve the accuracy of the voltage measurements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICL7106CM44Z Overview

Use the download button to access the ICL7106CM44Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL71, or try a keyword search, such as Analog to Digital Converters
