ICL7107CPLZ - Renesas Electronics

Description: The Intersil ICL7106 and ICL7107 are high performance, low power, 31/2 digit A/D converters. Included are seven segment decoders, display drivers, a reference, and a clock. The ICL7106 is designed to interface with a liquid crystal display (LCD) and includes a multiplexed backplane drive; the ICL7107 will directly drive an instrument size light emitting diode (LED) display. The ICL7106 and ICL7107 bring together a combination of high accuracy, versatility, and true economy. It features autozero to less than

Download ICL7107CPLZ Model

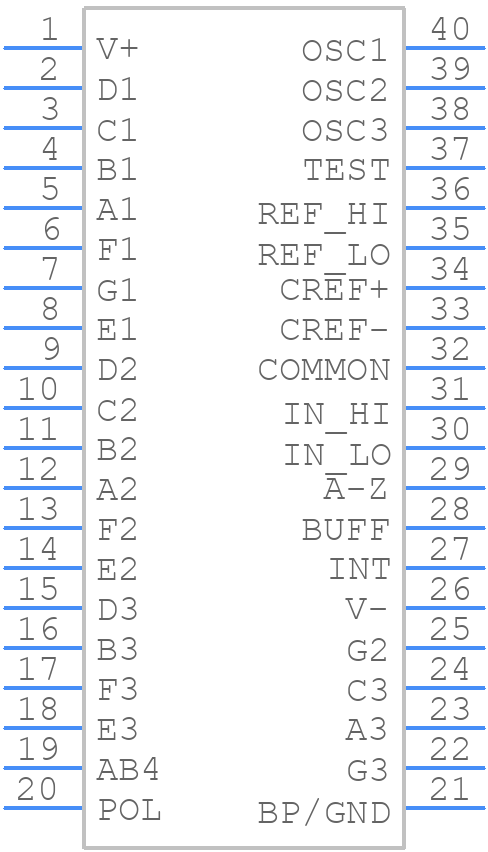

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

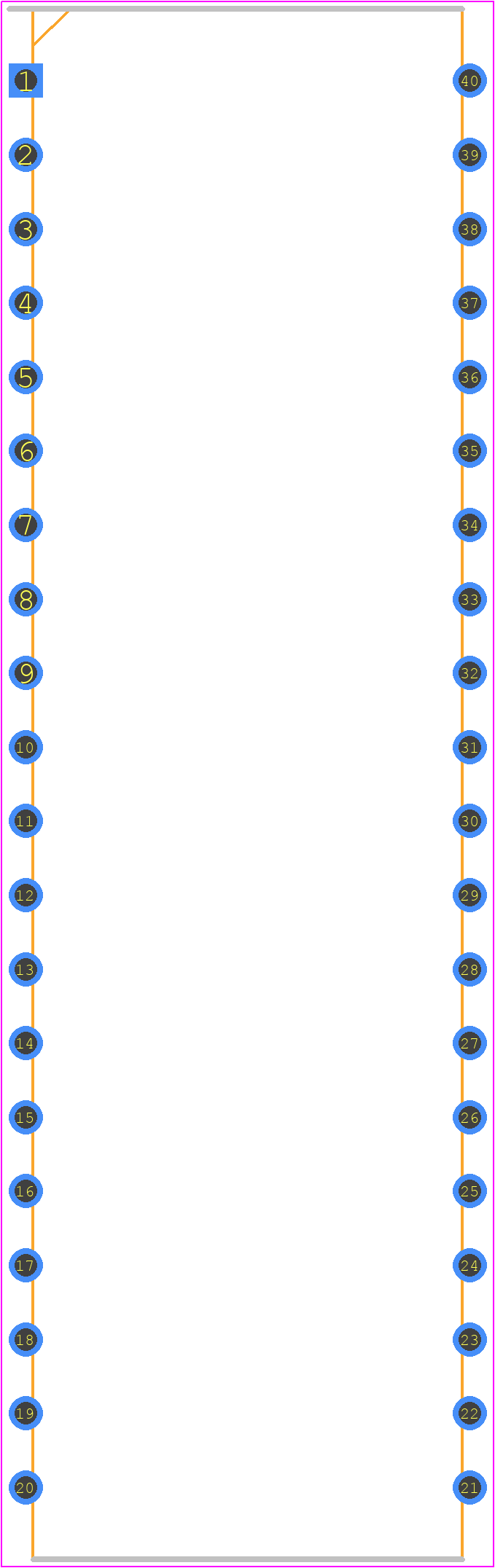

ICL7107CPLZ - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - E40.6-ren1
click to zoom
3D Models
ICL7107CPLZ - Renesas Electronics  - 3D model - Dual-In-Line Packages - E40.6-ren1
click to zoom

ICL7107CPLZ Details

  • Manufacturer Part Number:

    ICL7107CPLZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    PDIP

  • Pin Count:

    40

  • Manufacturer Package Code:

    E40.6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Converter Type:

    A/D CONVERTER

  • Supply Current-Max:

    1.8 mA

  • Terminal Finish:

    Matte Tin (Sn) - annealed

ICL7107CPLZ Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog input signals. This ensures proper device operation and prevents latch-up.
  • To ensure accurate voltage measurement, it is essential to use a low-impedance voltage source, minimize noise and interference, and use a high-precision voltage reference. Additionally, ensure that the input voltage is within the specified range and that the device is operated within its recommended operating conditions.
  • The maximum clock frequency that can be used with the ICL7107CPLZ is 400 kHz. Exceeding this frequency may result in inaccurate conversions or device malfunction.
  • The ICL7107CPLZ has built-in overvoltage protection, but it is still essential to use external protection devices, such as voltage regulators or transient voltage suppressors, to prevent damage from overvoltage conditions.
  • To minimize noise and ensure accurate operation, it is recommended to use a multi-layer PCB with a solid ground plane, keep analog and digital signals separate, and use short, direct traces for the analog input signals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICL7107CPLZ Overview

Use the download button to access the ICL7107CPLZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL71, or try a keyword search, such as Analog to Digital Converters
