ICL7107SCPLZ - Renesas Electronics

Description: Support is limited to customers who have already adopted these products.The Intersil ICL7106 and ICL7107 are high performance, low power, 31/2 digit A/D converters. Included are seven segment decoders, display drivers, a reference, and a clock. The ICL7106 is designed to interface with a liquid crystal display (LCD) and includes a multiplexed backplane drive; the ICL7107 will directly drive an instrument size light emitting diode (LED) display. The ICL7106 and ICL7107 bring together a combination of high ac

Download ICL7107SCPLZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

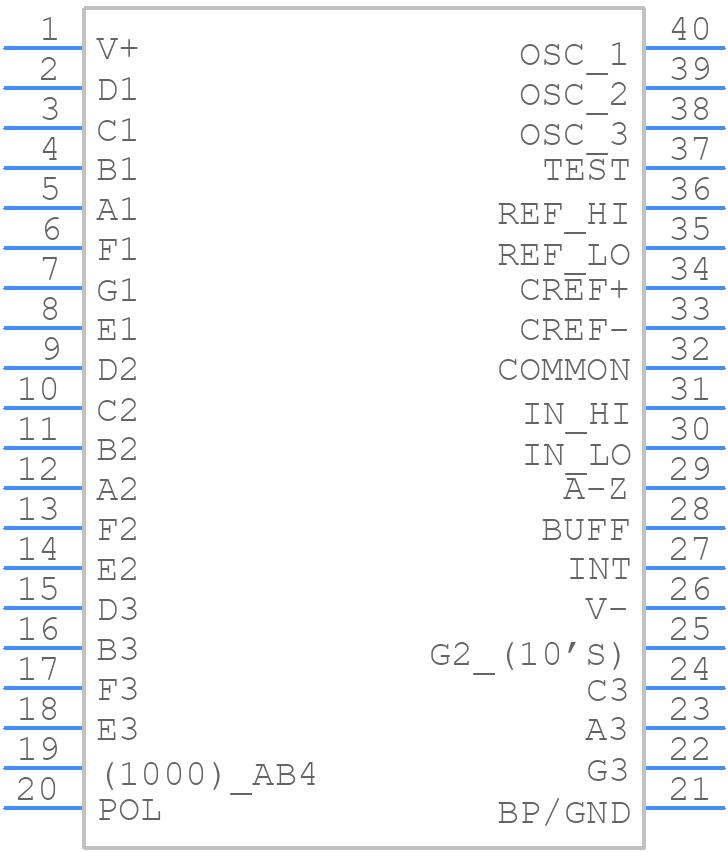

Symbol
ICL7107SCPLZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ICL7107SCPLZ - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - E40.6-ren1
click to zoom
3D Models
ICL7107SCPLZ - Renesas Electronics - 3D model - Dual-In-Line Packages - E40.6-ren1
click to zoom

ICL7107SCPLZ Details

  • Manufacturer Part Number:

    ICL7107SCPLZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP

  • Pin Count:

    40

  • Manufacturer Package Code:

    E40.6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Converter Type:

    A/D CONVERTER

  • Supply Current-Max:

    1.8 mA

  • Terminal Finish:

    Matte Tin (Sn)

ICL7107SCPLZ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ICL7107SCPLZ is -40°C to +85°C.
  • To ensure accurate voltage measurement, it is recommended to use a low-impedance voltage source, minimize noise and interference, and use a suitable voltage reference.
  • The ICL7107SCPLZ is not suitable for high-frequency applications above 100 kHz due to its limited bandwidth and settling time.
  • Calibration involves adjusting the zero-scale and full-scale adjustments to ensure accurate voltage measurement. Refer to the datasheet for specific calibration procedures.
  • The typical power consumption of the ICL7107SCPLZ is around 12 mW with a 5V supply voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICL7107SCPLZ Overview

Use the download button to access the ICL7107SCPLZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL71, or try a keyword search, such as Analog to Digital Converters
