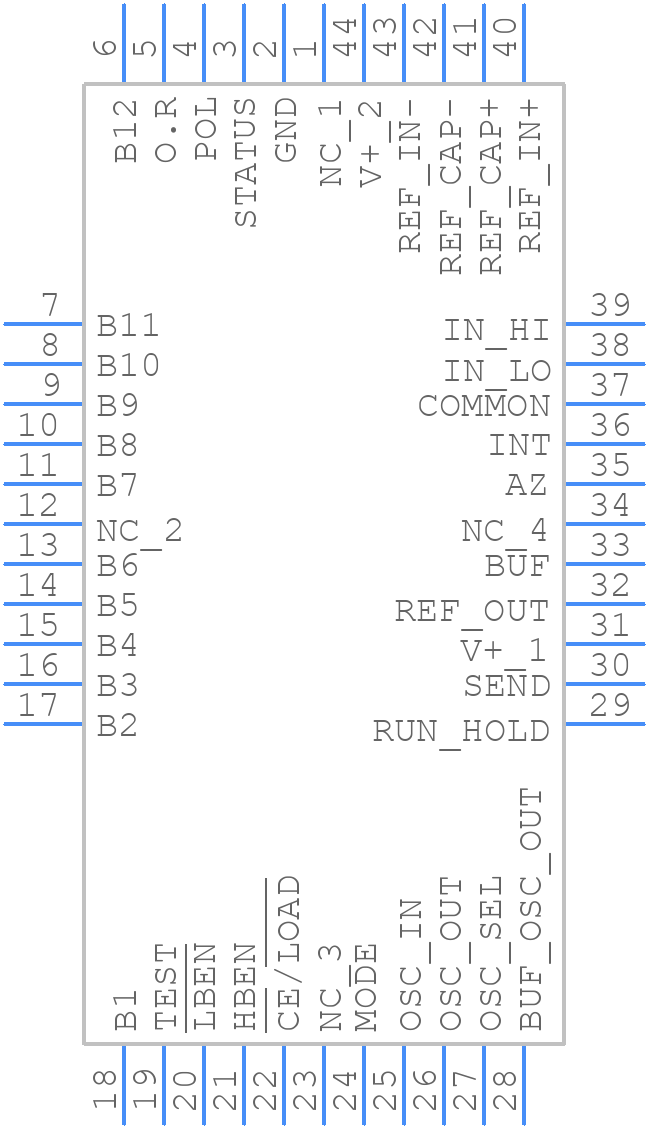

ICL7109CQH+D - Analog Devices

ICL7109CQH+D Details

• Manufacturer Part Number:

  ICL7109CQH+D

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  44-PLCC-N/A

• Package Description:

  QCCJ, LDCC44,.7SQ

• Pin Count:

  44

• Manufacturer Package Code:

  44-PLCC-N/A

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.30

• Date Of Intro:

  1987-10-01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog Input Voltage-Max:

  3.5 V

• Analog Input Voltage-Min:

  -3.5 V

• Converter Type:

  ADC, DUAL-SLOPE

• JESD-30 Code:

  S-PQCC-J44

• JESD-609 Code:

  e3

• Length:

  16.585 mm

• Linearity Error-Max (EL):

  0.0244%

• Moisture Sensitivity Level:

  3

• Negative Supply Voltage-Nom:

  -5 V

• Number of Analog In Channels:

  1

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  44

• Operating Temperature-Max:

  70 °C

• Output Bit Code:

  BINARY

• Output Format:

  PARALLEL, WORD

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC44,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Supply Current-Max:

  1.5 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  16.585 mm
