ICL7126CPLZ - Renesas Electronics

Description: The ICL7126 is a high performance, very low power 31/2-digit, A/D converter. All the necessary active devices are contained on a single CMOS IC, including seven segment decoders, display drivers, reference, and clock. The ICL7126 is designed to interface with a liquid crystal display (LCD) and includes a backplane drive. The supply current of 100µA is ideally suited for 9V battery operation. The ICL7126 brings together an unprecedented combination of high accuracy, versatility, and true economy. It features

Download ICL7126CPLZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

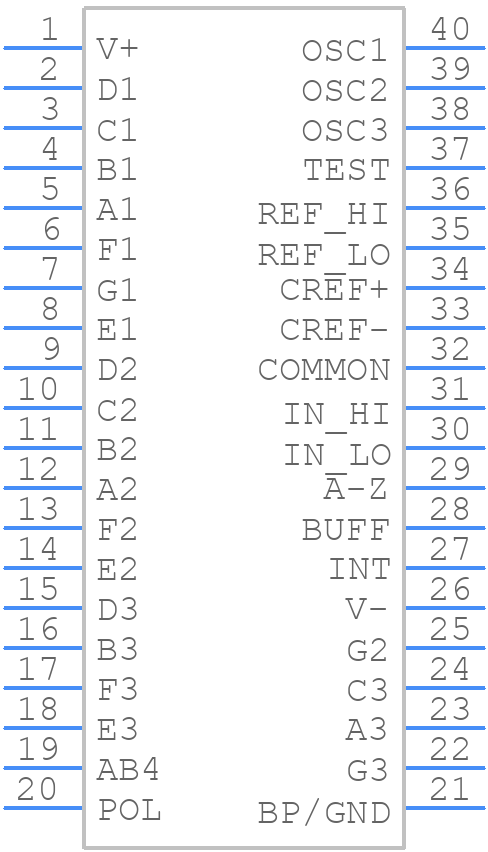

ICL7126CPLZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

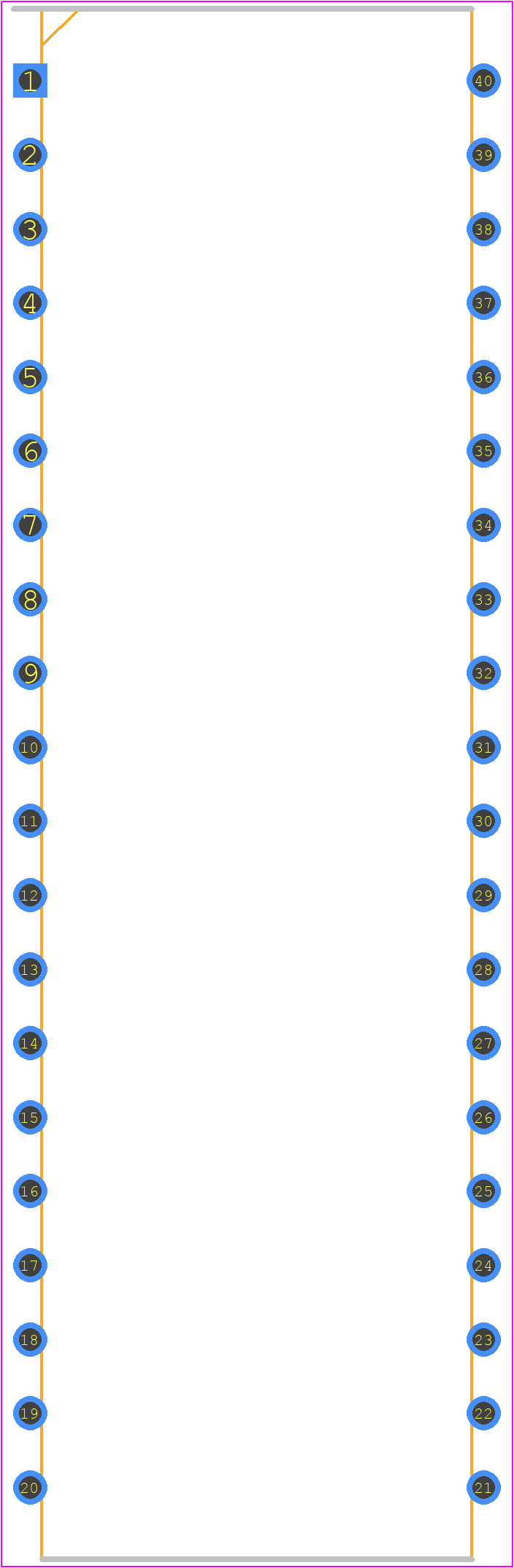

ICL7126CPLZ - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - JEDEC MS-011-AC ISSUE B)
click to zoom
3D Models
ICL7126CPLZ - Renesas Electronics - 3D model - Dual-In-Line Packages - JEDEC MS-011-AC ISSUE B)
click to zoom

ICL7126CPLZ Details

  • Manufacturer Part Number:

    ICL7126CPLZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    PDIP

  • Package Description:

    DIP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    E40.6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, DUAL-SLOPE

  • JESD-30 Code:

    R-PDIP-T40

  • JESD-609 Code:

    e3

  • Length:

    51.75 mm

  • Number of Analog In Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP40,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    6.35 mm

  • Supply Voltage-Nom:

    9 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

ICL7126CPLZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ICL7126CPLZ involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the analog signal sources to minimize noise pickup.
  • To ensure accurate voltage measurement, use a high-impedance voltage source, minimize noise and interference, and use a low-noise, low-impedance analog signal path. Also, calibrate the device according to the datasheet recommendations.
  • The ICL7126CPLZ can handle input voltages up to ±250mV, but it's recommended to limit the input voltage to ±200mV to ensure accurate measurements and prevent damage to the device.
  • The ICL7126CPLZ is designed for low-frequency applications (up to 100kHz). For high-frequency applications, consider using a different device or adding external filtering to reduce noise and aliasing effects.
  • The ICL7126CPLZ can be interfaced with a microcontroller using a serial interface (SPI or I²C). Ensure that the microcontroller's communication protocol matches the ICL7126CPLZ's interface mode, and use a level shifter if necessary.
