ICL7136CPL+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - ICL7136CPL+ - Analogue to Digital Converter, LCD Display, Differential, Single, 0 V

Download ICL7136CPL+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

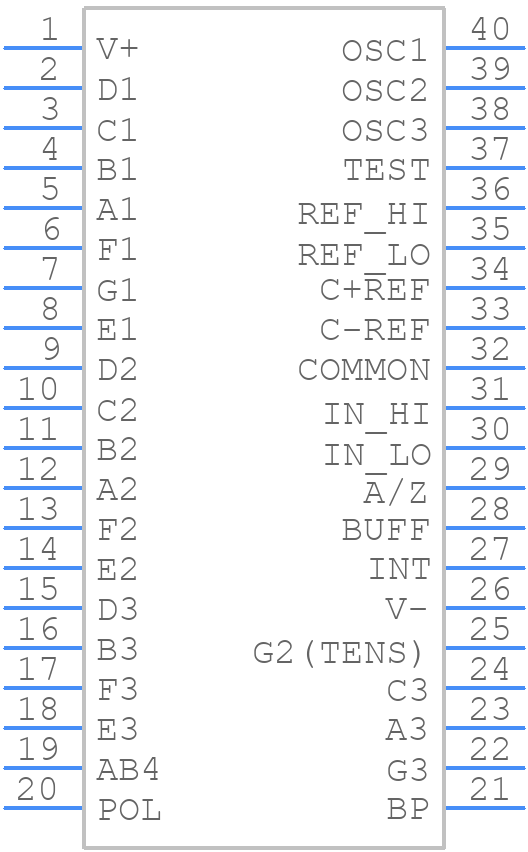

ICL7136CPL+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ICL7136CPL+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 40 PDIP
click to zoom
3D Models
ICL7136CPL+ - Analog Devices - 3D model - Dual-In-Line Packages - 40 PDIP
click to zoom

ICL7136CPL+ Details

  • Manufacturer Part Number:

    ICL7136CPL+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    40-PDIP-600_MIL

  • Package Description:

    PLASTIC, DIP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    40-PDIP-600_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, DUAL-SLOPE

  • JESD-30 Code:

    R-PDIP-T40

  • JESD-609 Code:

    e3

  • Length:

    52.07 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP40,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Nom:

    9 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15.24 mm

ICL7136CPL+ Frequently Asked Questions (FAQs)

  • To minimize noise and ensure accurate readings, it is recommended to place the ICL7136CPL+ close to the analog-to-digital converter (ADC) and use a ground plane to shield the device from noise. Additionally, keep the input traces short and away from digital signals, and use a low-impedance source for the input voltage.
  • Calibration of the ICL7136CPL+ involves adjusting the zero-scale and full-scale outputs to match the desired voltage range. This can be done by applying a known input voltage and adjusting the internal reference voltage using the CAL pin. Refer to the application note AN-320 from Analog Devices for a detailed calibration procedure.
  • The ICL7136CPL+ can handle input voltages up to 40V without damage, but it is recommended to limit the input voltage to 30V or less to ensure accurate readings and prevent overheating.
  • Yes, the ICL7136CPL+ can be used in a multiplexed configuration. To do this, connect the input pins to a multiplexer and switch between different input channels. Ensure that the multiplexer is designed for high-impedance sources and has a low charge injection to prevent errors.
  • The typical settling time for the ICL7136CPL+ is around 10-15ms. This settling time can affect the measurement accuracy, especially in high-speed applications. To ensure accurate readings, it is recommended to wait for at least 2-3 times the settling time before taking a measurement.
