ICL7136CPLZ - Renesas Electronics

Description: The Intersil ICL7136 is a high performance, low power 31/2 digit, A/D converter. Included are seven segment decoders, display drivers, a reference, and a clock. The ICL7136 is designed to interface with a liquid crystal display (LCD) and includes a multiplexed backplane drive. The ICL7136 brings together a combination of high accuracy, versatility, and true economy. It features auto-zero to less than 10µV, zero drift of less than 1µV/oC, input bias current of 10pA (Max), and rollover error of less than one

Download ICL7136CPLZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

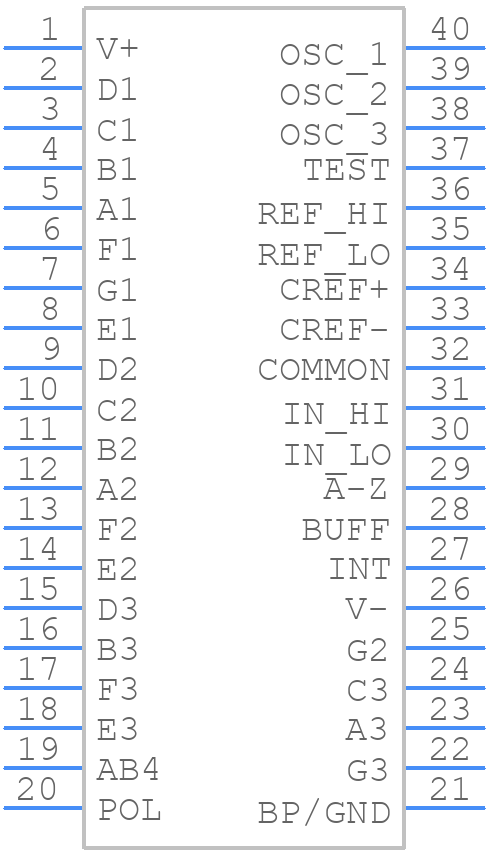

ICL7136CPLZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

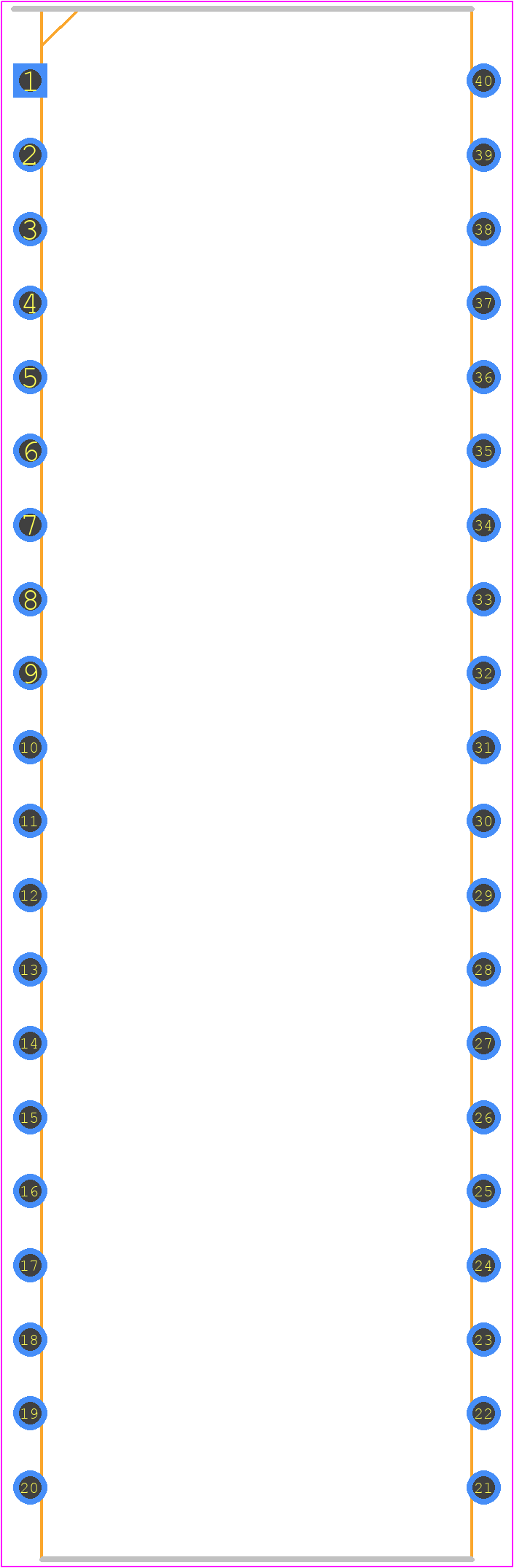

ICL7136CPLZ - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - pdip40
click to zoom
3D Models
ICL7136CPLZ - Renesas Electronics - 3D model - Dual-In-Line Packages - pdip40
click to zoom

ICL7136CPLZ Details

  • Manufacturer Part Number:

    ICL7136CPLZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP

  • Package Description:

    DIP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    E40.6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Converter Type:

    ADC, DUAL-SLOPE

  • JESD-30 Code:

    R-PDIP-T40

  • Length:

    51.75 mm

  • Number of Analog In Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP40,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    6.35 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Nom:

    9 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

ICL7136CPLZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ICL7136CPLZ involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the power supply to minimize noise and radiation.
  • To ensure accurate voltage measurement, use a high-impedance voltage source, minimize noise and interference, and use a low-noise, low-impedance analog ground plane. Also, ensure that the input voltage is within the specified range.
  • The maximum clock frequency for the ICL7136CPLZ is 100 kHz. Exceeding this frequency may result in inaccurate conversions and reduced performance.
  • Yes, the ICL7136CPLZ can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between channels. However, ensure that the device is properly reset and initialized between conversions.
  • The ICL7136CPLZ has built-in overvoltage protection up to 16V. However, for voltages above 16V, external protection circuits such as voltage regulators or zener diodes can be used to prevent damage to the device.
