Description:The ICL7665S super CMOS micropower Over/Under voltage detector contains two low power, individually programmable voltage detectors on a single CMOS chip. Requiring typically 3μA for operation, the device is intended for battery-operated systems and instruments which require high or low voltage warnings, settable trip points, or fault monitoring and correction. The trip points and hysteresis of the two voltage detectors are individually programmed via external resistors. An internal bandgap type reference pr
The recommended layout and placement for the ICL7665SACBAZ-T involves keeping the input and output capacitors close to the device, using a ground plane to reduce noise, and placing the device away from high-frequency components. A good rule of thumb is to follow the layout guidelines provided in the datasheet and application notes.
To ensure stability, make sure to follow the recommended component values and layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins with capacitors to prevent oscillation.
The maximum input voltage that the ICL7665SACBAZ-T can handle is 12V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or other protection circuitry to ensure the input voltage remains within the recommended range.
The ICL7665SACBAZ-T is rated for operation up to 125°C. However, it's recommended to derate the device's performance and ensure proper heat sinking to prevent overheating. It's also important to follow the recommended operating conditions and guidelines for high-temperature operation.
To troubleshoot issues with the ICL7665SACBAZ-T, start by checking the input and output voltage levels, as well as the current draw. Verify that the component values and layout meet the recommended guidelines. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for troubleshooting guides and contact Renesas support if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL7665SACBAZ-T Overview

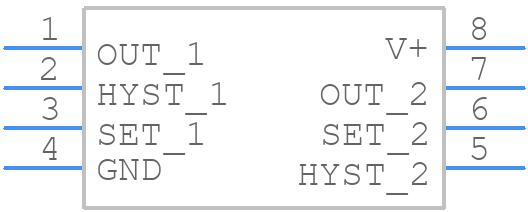

Use the download button to access the ICL7665SACBAZ-T schematic symbol, PCB footprint, and 3D model.
