Part Image

ICL7665SAIPAZ - Renesas Electronics

Description: The ICL7665S super CMOS micropower Over/Under voltage detector contains two low power, individually programmable voltage detectors on a single CMOS chip. Requiring typically 3μA for operation, the device is intended for battery-operated systems and instruments which require high or low voltage warnings, settable trip points, or fault monitoring and correction. The trip points and hysteresis of the two voltage detectors are individually programmed via external resistors. An internal bandgap type reference pr

Download ICL7665SAIPAZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

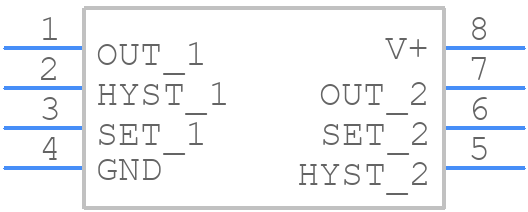

Symbol
ICL7665SAIPAZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ICL7665SAIPAZ - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - E8.3
click to zoom
3D Models
ICL7665SAIPAZ - Renesas Electronics - 3D model - Dual-In-Line Packages - E8.3
click to zoom

ICL7665SAIPAZ Details

  • Manufacturer Part Number:

    ICL7665SAIPAZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    E8.3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    WINDOW VOLTAGE DETECTOR

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.585 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ICL7665SAIPAZ Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the ICL7665SAIPAZ is 12V, but it's recommended to operate within the specified input voltage range of 7.5V to 10.5V for optimal performance.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor (at least 10uF), and add a 1uF capacitor between the VCC and GND pins. Additionally, ensure that the input voltage is within the specified range and the output current is within the maximum rating.
  • The ICL7665SAIPAZ can supply a minimum output current of 1mA, but it's recommended to operate within the specified output current range of 1mA to 100mA for optimal performance.
  • The ICL7665SAIPAZ is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation. Consult the datasheet for specific derating guidelines.
  • To protect the ICL7665SAIPAZ from input voltage transients, add a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit between the input pin and GND. This will help absorb voltage spikes and prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICL7665SAIPAZ Overview

Use the download button to access the ICL7665SAIPAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL76, or try a keyword search, such as Power Management Circuits
