ICL7665SIBAZA - Renesas Electronics

Description: The ICL7665S super CMOS micropower Over/Under voltage detector contains two low power, individually programmable voltage detectors on a single CMOS chip. Requiring typically 3μA for operation, the device is intended for battery-operated systems and instruments which require high or low voltage warnings, settable trip points, or fault monitoring and correction. The trip points and hysteresis of the two voltage detectors are individually programmed via external resistors. An internal bandgap type reference pr

Download ICL7665SIBAZA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

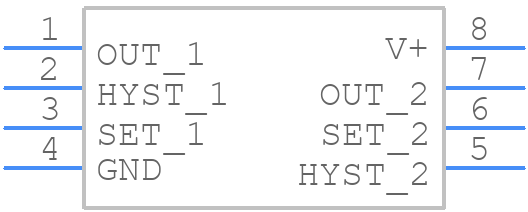

ICL7665SIBAZA - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ICL7665SIBAZA - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15-ren4
click to zoom
3D Models
ICL7665SIBAZA - Renesas Electronics - 3D model - Small Outline Packages - M8.15-ren4
click to zoom

ICL7665SIBAZA Details

  • Manufacturer Part Number:

    ICL7665SIBAZA

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE DETECTOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ICL7665SIBAZA Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the ICL7665SIBAZA is 12V, but it's recommended to operate within the specified input voltage range of 7.5V to 10.5V for optimal performance and reliability.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor (at least 10uF), and keep the input and output capacitors close to the device. Additionally, avoid using long traces and minimize parasitic inductance.
  • The ICL7665SIBAZA can supply a minimum output current of 1mA, but it's recommended to operate within the specified output current range of 10mA to 100mA for optimal performance and reliability.
  • The ICL7665SIBAZA is rated for operation up to 125°C, but it's recommended to derate the output current and voltage as temperature increases to ensure reliability and prevent thermal shutdown.
  • Use a TVS diode or a transient voltage suppressor in parallel with the input capacitor to protect the device from input voltage transients and spikes. Additionally, consider adding a series resistor to limit the input current.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICL7665SIBAZA Overview

Use the download button to access the ICL7665SIBAZA schematic symbol, PCB footprint, and 3D model.
