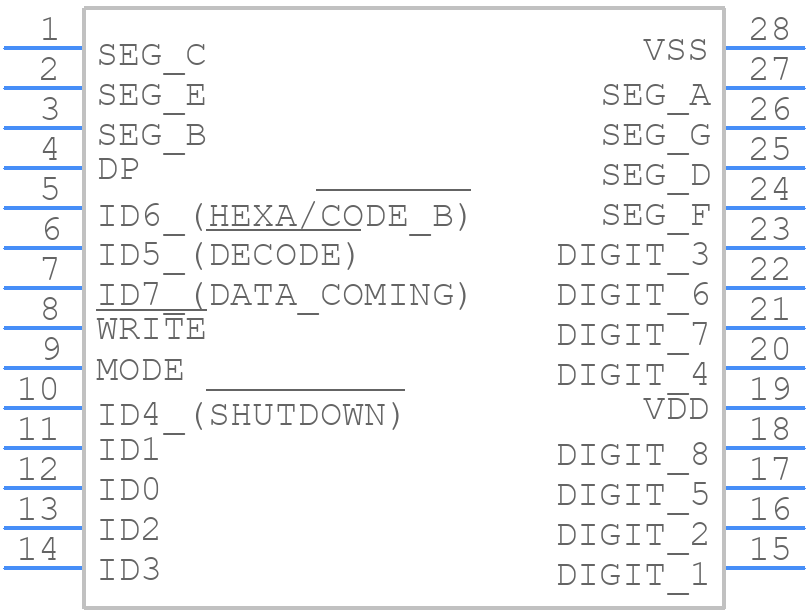

ICM7228AIBIZ - Renesas Electronics

ICM7228AIBIZ Details

• Manufacturer Part Number:

  ICM7228AIBIZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOICW

• Package Description:

  SOIC-28

• Pin Count:

  28

• Manufacturer Package Code:

  M28.3

• Country Of Origin:

  Mainland China, Malaysia, Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  8

• Data Input Mode:

  SERIAL

• Display Mode:

  SEGMENT

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e3

• Length:

  17.9 mm

• Moisture Sensitivity Level:

  3

• Multiplexed Display Capability:

  NO

• Number of Digits/Characters:

  8-DIGIT

• Number of Functions:

  1

• Number of Segments:

  7

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  0.45 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm

• fmax-Min:

  0.00039 MHz
