Description:The Intersil ICM7228 display driver interfaces microprocessors to an 8-digit, 7-segment, numeric LED display. Included on chip are two types of 7-segment decoder, multiplex scan circuitry, LED display segment drivers, LED display digit drivers and an 8-byte static memory as display RAM. Data can be written to the ICM7228A and ICM7228B's display RAM in sequential 8-digit update or in single-digit update format. Data is written to the ICM7228C display RAM in parallel random access format. The ICM7228A and ICM
The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input clock signal. This ensures proper initialization of the device.
To optimize for low power consumption, use the power-down mode, reduce the clock frequency, and minimize the number of active circuits. Additionally, consider using a lower voltage supply and optimizing the output load capacitance.
The maximum clock frequency supported by the ICM7228CIPIZ is 100 MHz. However, the actual frequency limit may vary depending on the specific application and operating conditions.
To troubleshoot issues with the clock output, check the input clock signal, ensure proper power supply and decoupling, and verify the clock output configuration. Also, check for any signal integrity issues, such as noise or jitter, that may affect the clock signal.
The ICM7228CIPIZ is rated for operation up to 85°C. However, it's essential to consider the specific application and operating conditions, as high temperatures can affect the device's performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICM7228CIPIZ Overview

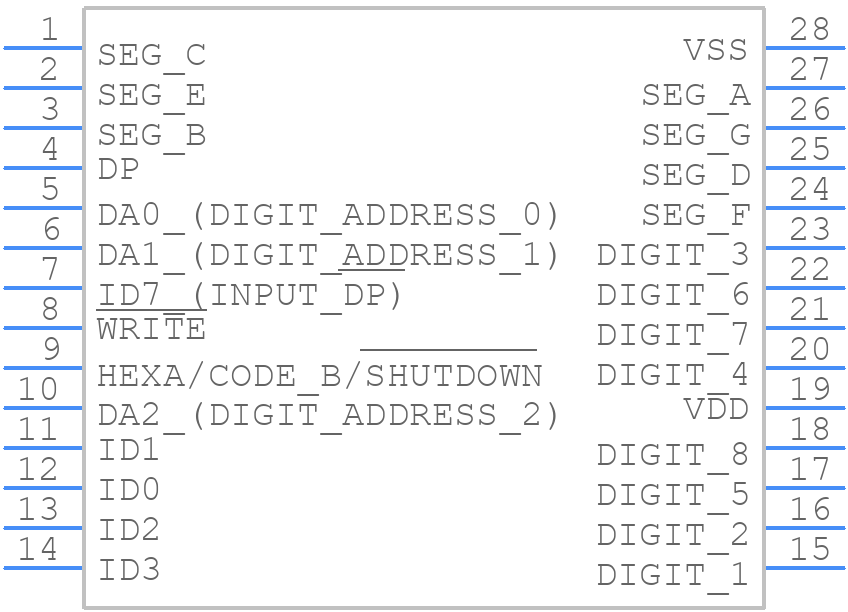

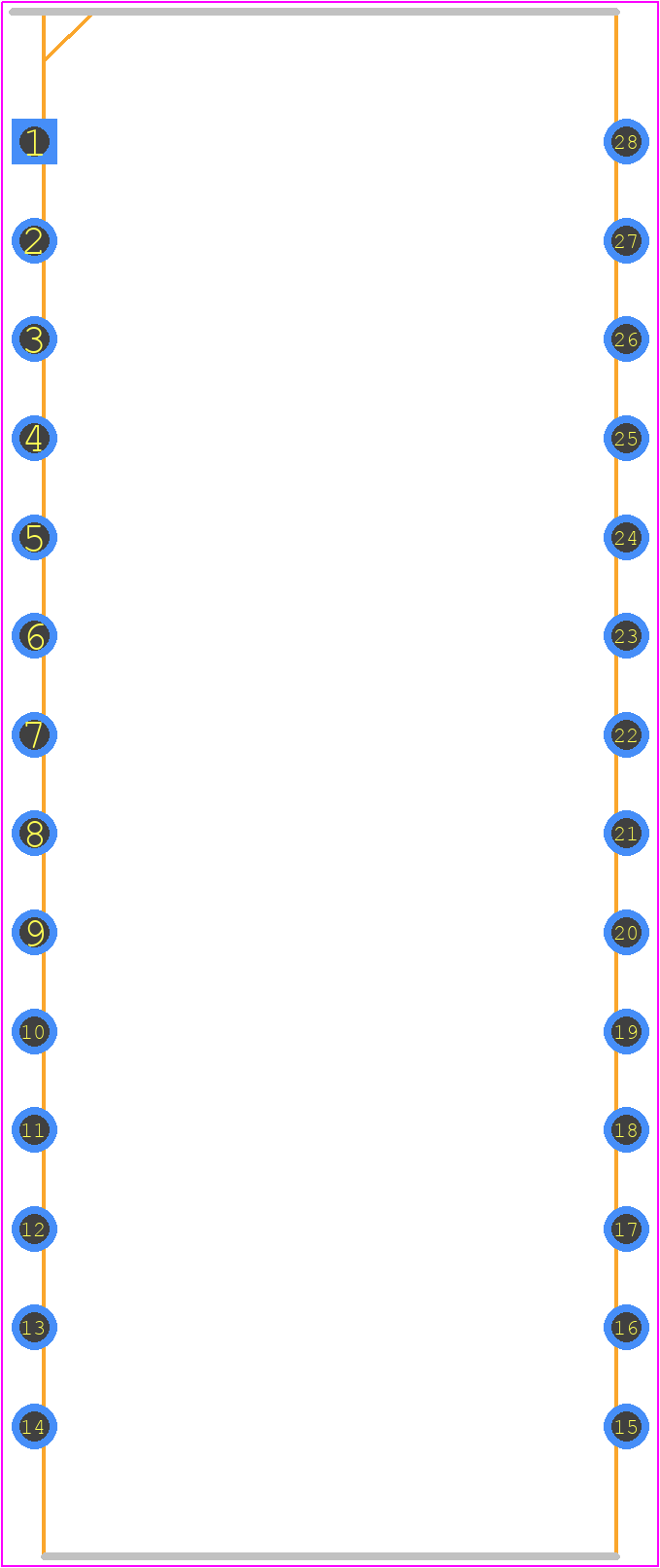

Use the download button to access the ICM7228CIPIZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICM72,
or try a keyword search, such as Display Drivers
