Description:MEMS MICROPHONE, -40 TO 85DEG C; Audio Control Type:MEMS Microphone; Supply Voltage Range:1.62V to 3.63V; Control Interface:I2S; Audio IC Case Style:LGA; No. of Pins:7Pins; Operating Temperature Min:-40°C; Product Range:- RoHS Compliant: Yes
A good PCB layout for the ICS-43432 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the IC and the crystal oscillator. A 4-layer PCB with a dedicated ground plane is recommended.
The ICS-43432 has an internal calibration circuit that adjusts the clock output frequency. To ensure proper calibration, the IC must be powered up with a stable voltage supply, and the crystal oscillator must be properly connected and oscillating. The calibration process is automatic and does not require any external intervention.
The maximum frequency deviation of the ICS-43432's clock output is ±50 ppm over the operating temperature range of -40°C to +85°C. This deviation is due to the internal crystal oscillator and can be affected by factors such as temperature, voltage, and aging.
Yes, the ICS-43432 is designed to be a low-power device, with a typical current consumption of 1.5 mA at 3.3V. It also has a power-down mode that reduces current consumption to less than 1 μA, making it suitable for battery-powered applications.
To troubleshoot issues with the ICS-43432's clock output, check the power supply voltage, ensure the crystal oscillator is properly connected and oscillating, and verify that the IC is properly configured. Also, check for any noise or interference on the clock output lines and ensure that the load capacitance is within the recommended range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICS-43432 Overview

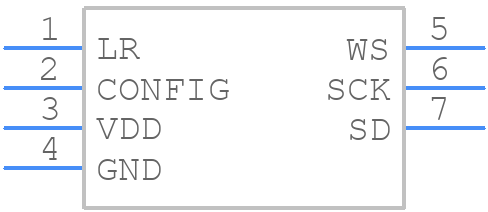

Use the download button to access the ICS-43432 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICS-4,
or try a keyword search, such as Other Consumer ICs
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
