XP Power recommends a PCB layout with a large copper area connected to the tab of the ICZ0912S15 to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the ICZ0912S15 is designed to withstand high-vibration environments. However, it's essential to ensure that the device is properly secured to the PCB and that the PCB is rigid enough to prevent damage from vibration. XP Power recommends following the recommended PCB layout and securing the device with a suitable adhesive or mechanical fastening method.
To ensure EMC, XP Power recommends following proper PCB layout and design practices, such as keeping sensitive analog circuits away from the ICZ0912S15, using shielding, and implementing proper filtering and decoupling. Additionally, the ICZ0912S15 has built-in EMI filtering, which helps to reduce electromagnetic interference.
The ICZ0912S15 has an operating temperature range of -40°C to +85°C. However, the device's performance and reliability may be affected at extreme temperatures. XP Power recommends operating the device within the recommended temperature range for optimal performance and reliability.
The ICZ0912S15 is designed to operate in a dry environment. While it has some level of moisture resistance, it's not recommended for use in humid or wet environments. If the device is exposed to moisture, it may lead to corrosion or other reliability issues. XP Power recommends following proper storage and handling procedures to prevent moisture exposure.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICZ0912S15 Overview

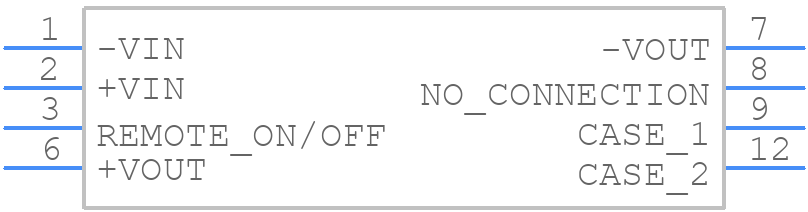

Use the download button to access the ICZ0912S15 schematic symbol, PCB footprint, and 3D model.
