IDD04SG60C - Infineon

IDD04SG60C Details

• Manufacturer Part Number:

  IDD04SG60C

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

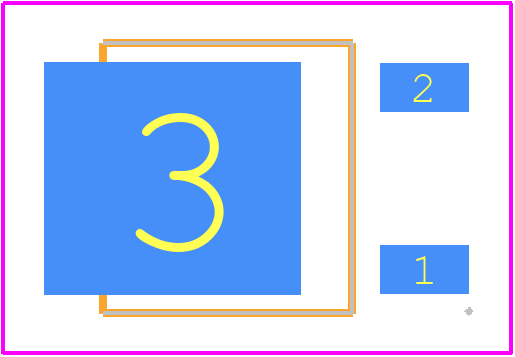

• Part Package Code:

  TO-252

• Package Description:

  GREEN, PLASTIC PACKAGE-3

• Pin Count:

  4

• Country Of Origin:

  Austria, Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  3

• Additional Feature:

  PD-CASE

• Application:

  FAST RECOVERY

• Case Connection:

  CATHODE

• Configuration:

  SINGLE

• Diode Element Material:

  SILICON CARBIDE

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  2.3 V

• JEDEC-95 Code:

  TO-252

• JESD-30 Code:

  R-PSSO-G2

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Non-rep Pk Forward Current-Max:

  13.5 A

• Number of Elements:

  1

• Number of Phases:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  4 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Power Dissipation-Max:

  43 W

• Qualification Status:

  Not Qualified

• Rep Pk Reverse Voltage-Max:

  600 V

• Reverse Current-Max:

  25 µA

• Reverse Test Voltage:

  600 V

• Surface Mount:

  YES

• Technology:

  SCHOTTKY

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE
