IDDD06G65C6XTMA1 - Infineon

Description: Schottky Diodes & Rectifiers SIC DIODES

Download IDDD06G65C6XTMA1 Model

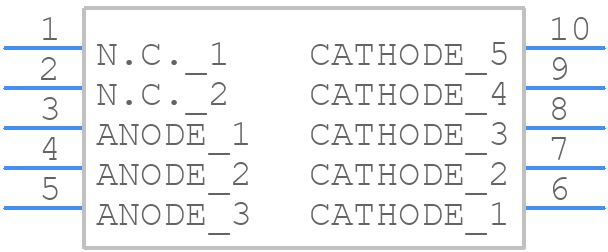

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IDDD06G65C6XTMA1 - Infineon PCB footprint - Other - Other - PG-HDSOP-10-1
click to zoom

IDDD06G65C6XTMA1 Details

  • Manufacturer Part Number:

    IDDD06G65C6XTMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    PD-CASE

  • Application:

    EFFICIENCY

  • Breakdown Voltage-Min:

    650 V

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON CARBIDE

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.35 V

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    38 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    18 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Dissipation-Max:

    73 W

  • Rep Pk Reverse Voltage-Max:

    650 V

  • Reverse Current-Max:

    20 µA

  • Reverse Test Voltage:

    420 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

IDDD06G65C6XTMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IDDD06G65C6XTMA1 is -40°C to 150°C.
  • To ensure reliability, follow the recommended thermal design and layout guidelines, and consider using a heat sink or thermal interface material to reduce junction temperature.
  • The recommended gate drive voltage for the IDDD06G65C6XTMA1 is 15V, but it can operate with a gate drive voltage as low as 10V.
  • Yes, the IDDD06G65C6XTMA1 can be used in a parallel configuration to increase current handling, but ensure that the gate drive signals are properly synchronized and the thermal design is adequate.
  • Use a suitable overvoltage protection circuit, such as a TVS diode or a zener diode, and consider implementing overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
