iDQ48010A480V-002-R - TDK Lambda

Description: Power Line EMC Filters, DC Input (75 Vdc), Rated Current:10A, PCB Type

Download iDQ48010A480V-002-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
iDQ48010A480V-002-R - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

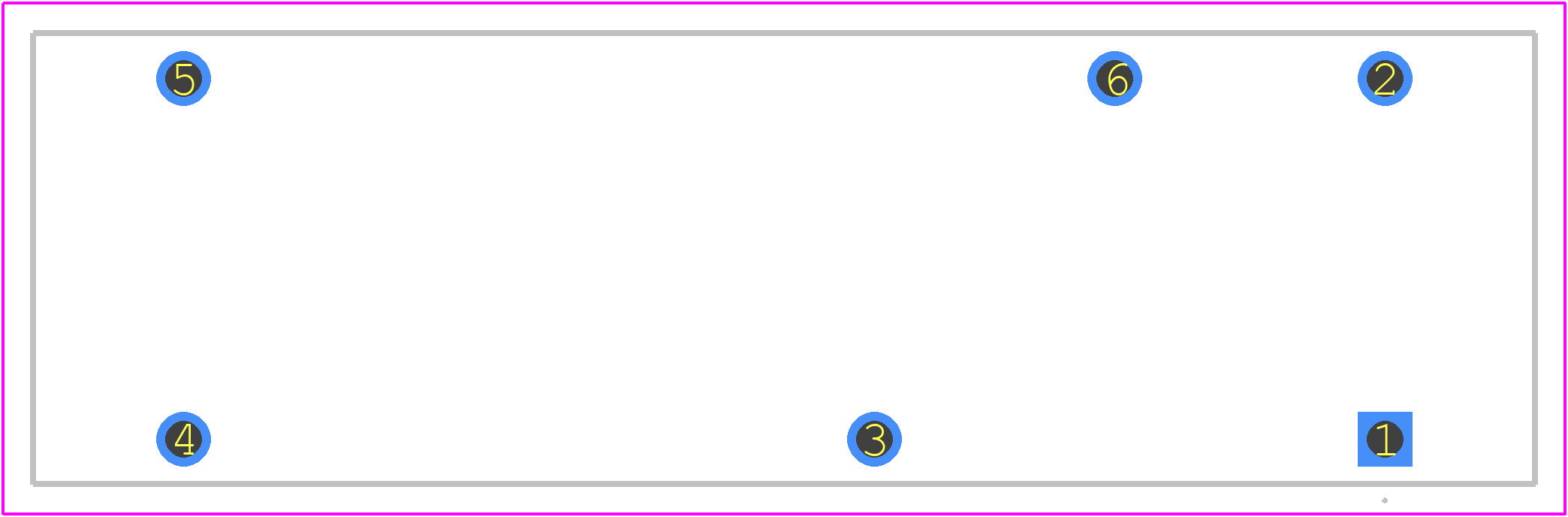

iDQ48010A480V-002-R - TDK Lambda PCB footprint - Other - Other - iDQ48010A480V-002-R-2
click to zoom
3D Models
iDQ48010A480V-002-R - TDK Lambda - 3D model - Other - iDQ48010A480V-002-R-2
click to zoom

iDQ48010A480V-002-R Details

  • Manufacturer Part Number:

    IDQ48010A480V-002-R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK-Lambda Corporation

  • Filter Type:

    DATA LINE FILTER MODULE

  • Height:

    10 mm

  • Length:

    50 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Current:

    10 A

  • Rated Voltage:

    48 V

  • Width:

    15 mm

iDQ48010A480V-002-R Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the DC-DC converter near a metal edge of the PCB, using a solid copper plane for heat dissipation, and ensuring good airflow around the component.
  • To ensure EMC, use a metal enclosure, keep the DC-DC converter away from sensitive circuits, use shielded cables, and follow proper grounding and shielding techniques.
  • The maximum allowable capacitance for the output filter is 220uF. Exceeding this value may cause instability or oscillation.
  • Yes, the IDQ48010A480V-002-R is designed to withstand vibrations up to 10G. However, it's essential to ensure the PCB is securely fastened and the component is properly soldered.
  • To troubleshoot issues, check the input voltage, output voltage, and current. Verify the PCB layout, component soldering, and thermal performance. Consult the datasheet and application notes for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

iDQ48010A480V-002-R Overview

Use the download button to access the iDQ48010A480V-002-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like iDQ48, or try a keyword search, such as Data Line Filters
