IDT7201LA12JG - Renesas Electronics

IDT7201LA12JG Details

• Manufacturer Part Number:

  IDT7201LA12JG

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

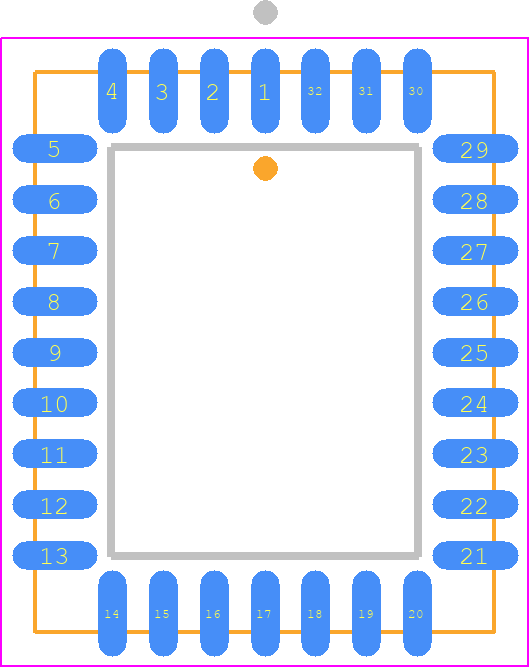

• Package Description:

  GREEN, PLASTIC, LCC-32

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.71

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Access Time-Max:

  25 ns

• Additional Feature:

  RETRANSMIT

• Cycle Time:

  35 ns

• JESD-30 Code:

  R-PQCC-J32

• JESD-609 Code:

  e3

• Length:

  13.97 mm

• Memory Density:

  147456 bit

• Memory IC Type:

  OTHER FIFO

• Memory Width:

  9

• Number of Functions:

  1

• Number of Terminals:

  32

• Number of Words:

  512 words

• Number of Words Code:

  16000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  16KX9

• Output Characteristics:

  3-STATE

• Output Enable:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER

• Parallel/Serial:

  PARALLEL

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.55 mm

• Supply Current-Max:

  0.12 mA

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  11.43 mm
