IDT72V06L15JG - Renesas Electronics

Description: IDT IDT72V06L15JG, FIFO Memory, Dual 144kbit, 16K x 9 bit, Bi-Directional 15ns, 3 → 3.6 V, 32-Pin PLCC

Download IDT72V06L15JG Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this IDT72V06L15JG model

Email notifications will be applied after download.

Send part feedback

Symbol

IDT72V06L15JG - Renesas Electronics - PCB symbol

PCB Footprints

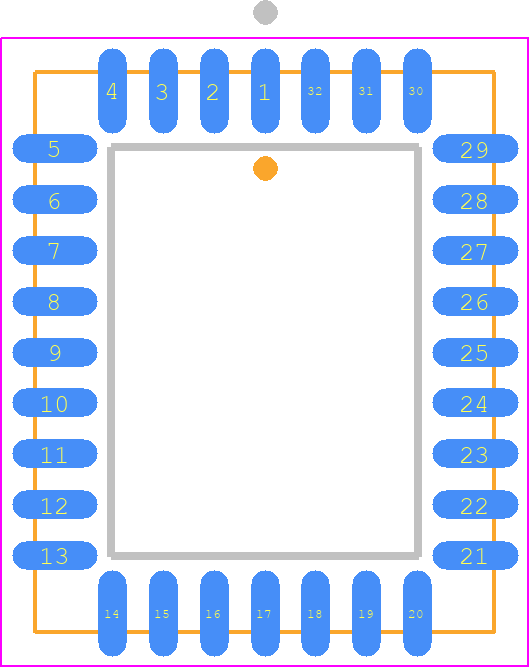

IDT72V06L15JG - Renesas Electronics PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - plg32

3D Models

IDT72V06L15JG - Renesas Electronics - 3D model - Plastic Leaded Chip Carrier - plg32

Datasheet Download Datasheet
Stock & Prices Price & Stock for IDT72V06L15JG
Part Number IDT72V06L15JG
Manufacturer Renesas Electronics
Pin Count 32
Part Category Integrated Circuit
Package Category Plastic Leaded Chip Carrier
Footprint Name Plastic Leaded Chip Carrier - plg32
Released Date Feb 13, 2020
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

IDT72V06L15JG Details

Manufacturer Part Number:
IDT72V06L15JG
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
GREEN, PLASTIC, LCC-32
ECCN Code:
EAR99
HTS Code:
8542.32.00.71
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0

Trust Checks

Community Provided

System Verified

Community Approved

IDT72V06L15JG Overview

Use the download button to access the IDT72V06L15JG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IDT72, or try a keyword search, such as FIFOs
