IFCM15P60GDXKMA1 - Infineon

Description: Power Driver Module IGBT 3 Phase Inverter 650 V 30 A 24-PowerDIP Module (1.028", 26.10mm)

Download IFCM15P60GDXKMA1 Model

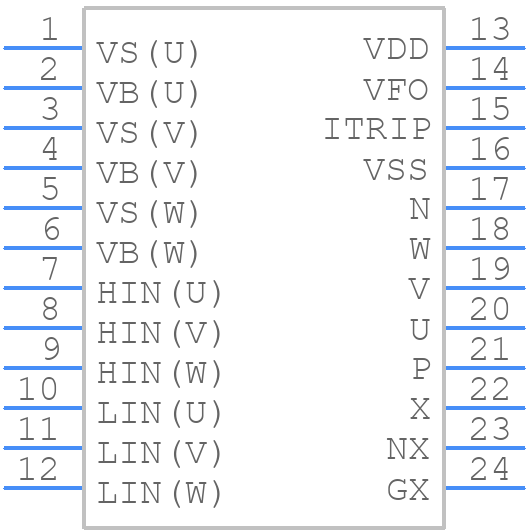

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

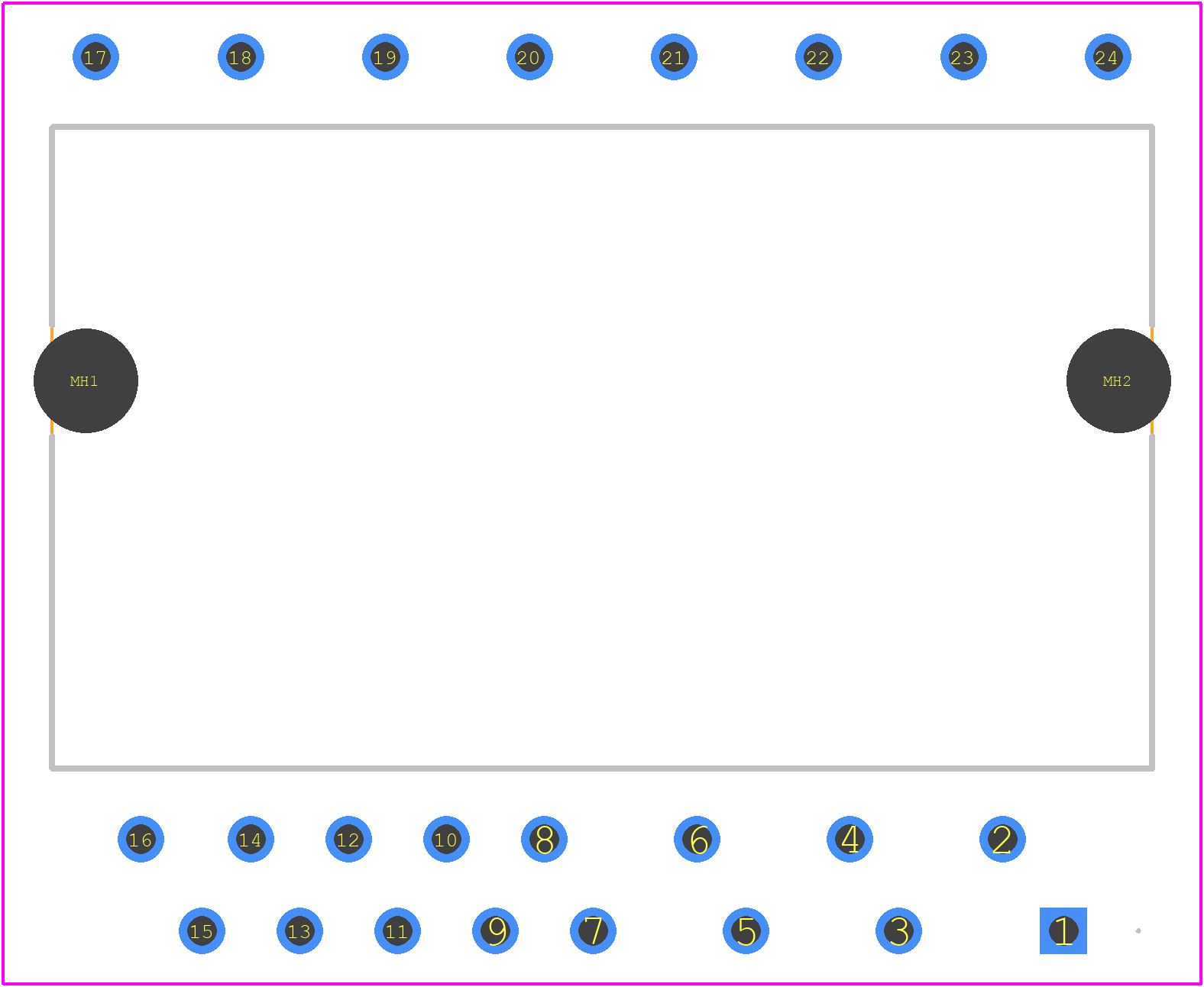

PCB Footprints
IFCM15P60GDXKMA1 - Infineon PCB footprint - Other - Other - IFCM15P60GDXKMA1-4
click to zoom
3D Models
IFCM15P60GDXKMA1 - Infineon  - 3D model - Other - IFCM15P60GDXKMA1-4
click to zoom

IFCM15P60GDXKMA1 Details

  • Manufacturer Part Number:

    IFCM15P60GDXKMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24

  • Country Of Origin:

    Austria, Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-MDFM-X24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Package Body Material:

    METAL

  • Package Code:

    DFM

  • Package Equivalence Code:

    MODULE,25LEAD,4.0

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    14.5 V

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    DUAL

IFCM15P60GDXKMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for IFCM15P60GDXKMA1 is -40°C to 150°C.
  • Proper thermal management can be achieved by ensuring good heat sink contact, using thermal interface materials, and maintaining a clean and dust-free environment.
  • The recommended gate resistance value for IFCM15P60GDXKMA1 is between 10 ohms and 100 ohms.
  • Yes, IFCM15P60GDXKMA1 can be used in a parallel configuration, but it's essential to ensure that the modules are matched and the gate drive circuits are synchronized.
  • The maximum allowable voltage transient for IFCM15P60GDXKMA1 is 120% of the maximum rated voltage.
