Infineon provides a recommended PCB layout for the IFX1051SJXUMA1 in their application note AN2014-01. It suggests using a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions and thermal management guidelines. This includes using a heat sink, ensuring good airflow, and monitoring the device's junction temperature (Tj) to prevent overheating.
The IFX1051SJXUMA1 has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent damage. Infineon recommends following the ESD protection guidelines outlined in their application note AN2013-03.
Yes, the IFX1051SJXUMA1 is AEC-Q100 qualified, making it suitable for use in automotive applications. However, it's essential to ensure that the device is used within its recommended operating conditions and that the system design meets the required automotive standards and regulations.
Infineon recommends following the soldering guidelines outlined in their application note AN2014-02, which provides detailed information on the recommended soldering process, including temperature profiles and soldering times.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IFX1051SJXUMA1 Overview

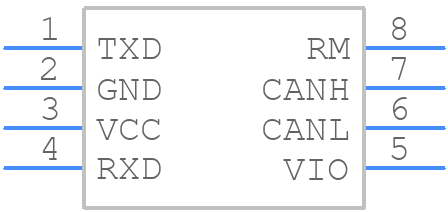

Use the download button to access the IFX1051SJXUMA1 schematic symbol, PCB footprint, and 3D model.
