IGCM15F60GA - Infineon

Description: Motor / Motion / Ignition Controllers & Drivers MINI DUAL-IN-LINE 15A/600V W/NTC 24PIN

Download IGCM15F60GA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

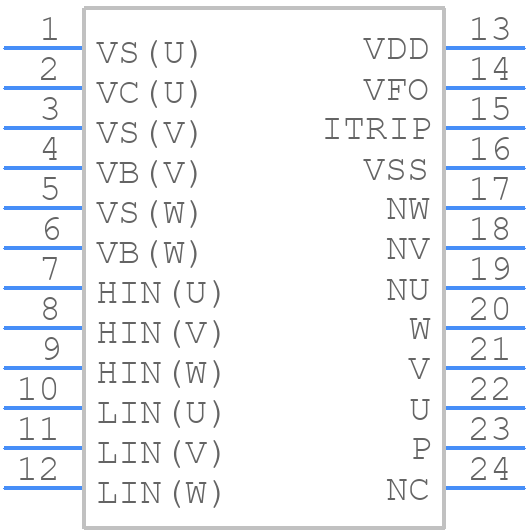

IGCM15F60GA - Infineon - PCB symbol
click to zoom
PCB Footprints

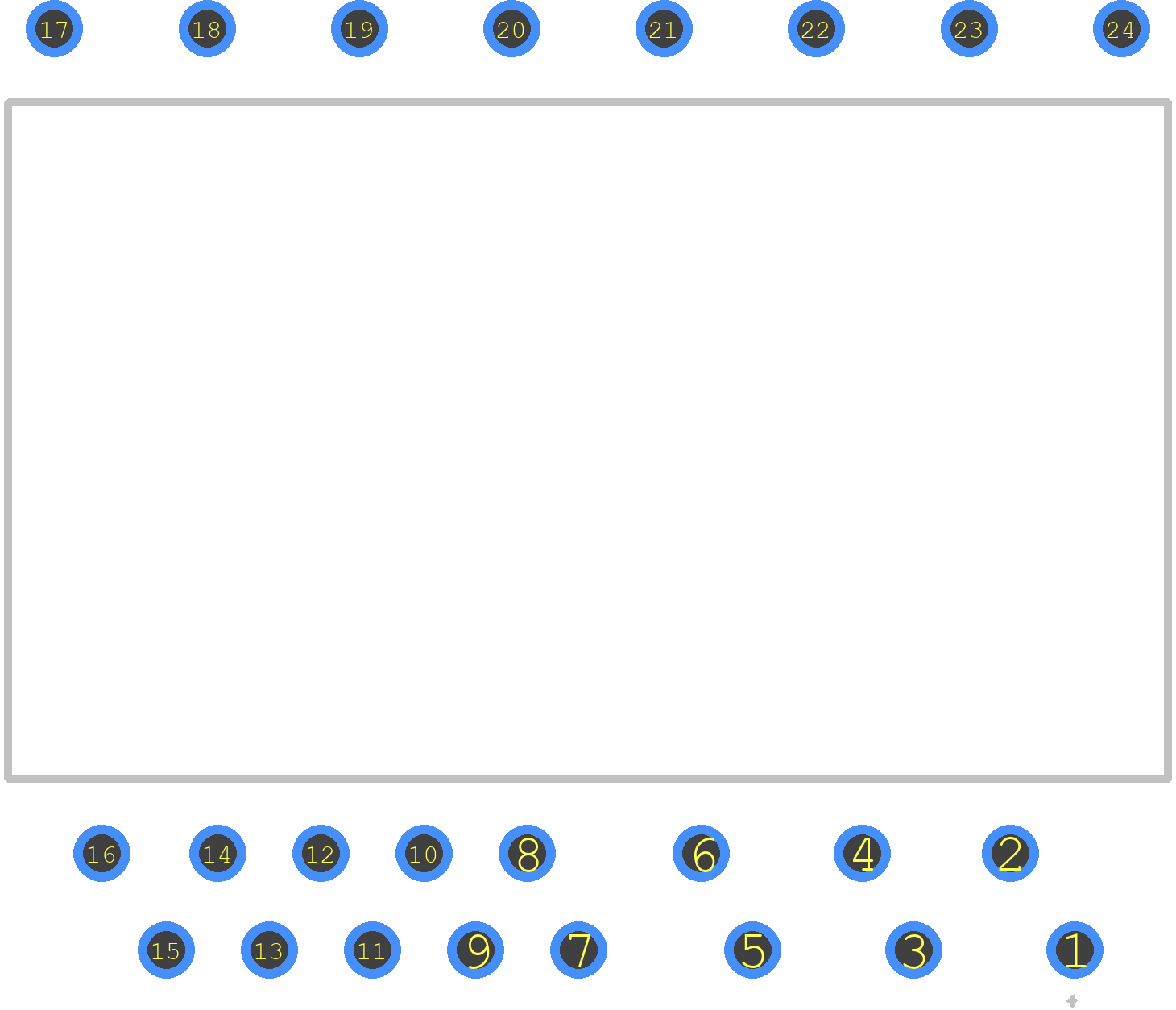

IGCM15F60GA - Infineon PCB footprint - Other - Other - IGCM15F60GA
click to zoom
3D Models
IGCM15F60GA - Infineon - 3D model - Other - IGCM15F60GA
click to zoom

IGCM15F60GA Details

  • Manufacturer Part Number:

    IGCM15F60GA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDMA-T24

  • Length:

    36 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    30 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    5.6 mm

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    14 V

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    21 mm

IGCM15F60GA Frequently Asked Questions (FAQs)

  • The maximum junction temperature of the IGCM15F60GA is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for reliable operation.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 1.5 K/W is recommended. Additionally, a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK should be used to fill the gap between the device and the heat sink.
  • The recommended gate resistor value for the IGCM15F60GA is between 10 ohms and 100 ohms, depending on the specific application and switching frequency. A higher gate resistor value can help reduce electromagnetic interference (EMI) but may increase switching losses.
  • Yes, the IGCM15F60GA can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the devices are properly matched and that the gate signals are synchronized to prevent uneven current sharing.
  • The maximum allowed dv/dt for the IGCM15F60GA is 10 kV/μs. Exceeding this value can lead to premature aging or failure of the device.
