The maximum junction temperature of the IGCM20F60GA is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
To ensure proper cooling, it's essential to provide a good thermal interface between the device and the heat sink. Apply a thin layer of thermal interface material, and ensure the heat sink is properly mounted and secured. Additionally, ensure good airflow around the device to dissipate heat efficiently.
The recommended gate resistor value for the IGCM20F60GA depends on the specific application and switching frequency. As a general guideline, a gate resistor value between 10 ohms and 22 ohms is suitable for most applications. However, it's recommended to consult the application note or contact Infineon's technical support for specific guidance.
Yes, the IGCM20F60GA can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the devices are properly matched, and the gate drive signals are synchronized to prevent uneven current sharing. Consult the application note or contact Infineon's technical support for specific guidance on parallel configuration.
The recommended dead time for the IGCM20F60GA depends on the specific application and switching frequency. As a general guideline, a dead time of 100-200 ns is suitable for most applications. However, it's recommended to consult the application note or contact Infineon's technical support for specific guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IGCM20F60GA Overview

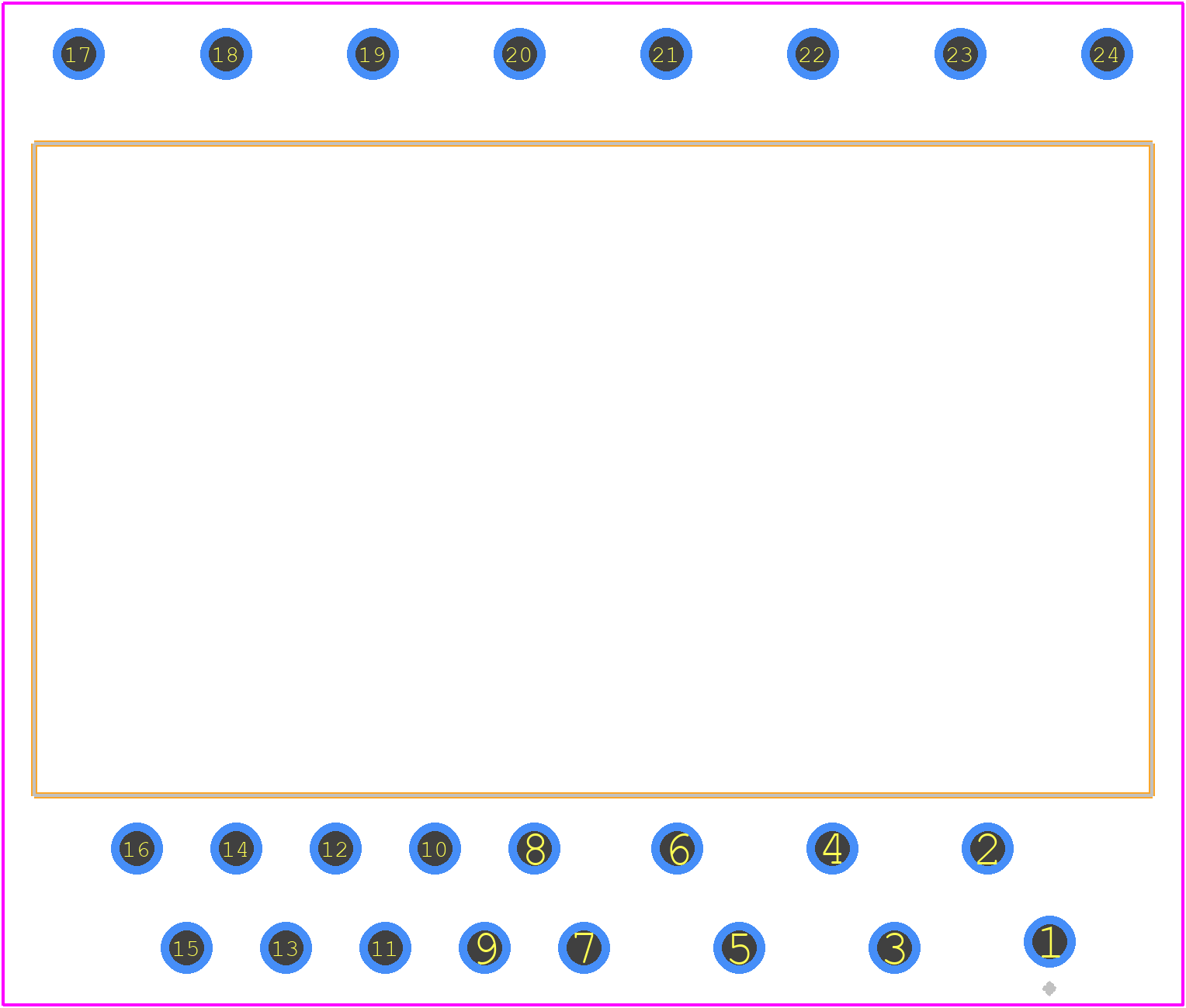

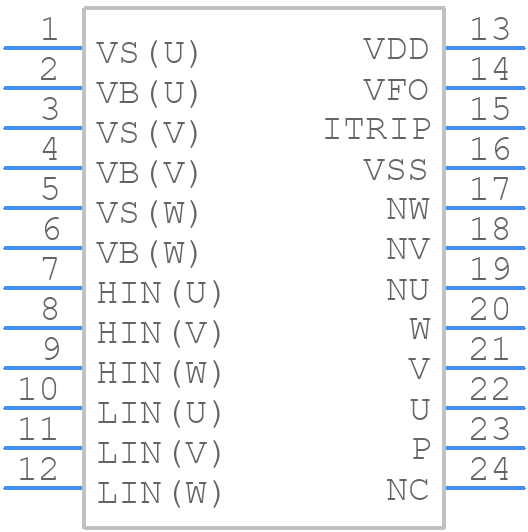

Use the download button to access the IGCM20F60GA schematic symbol, PCB footprint, and 3D model.
