IGCM20F60GAXKMA1 - Infineon

Description: INFINEON - IGCM20F60GAXKMA1 - IPM, IGBT, 20A, 600V, DIP

Download IGCM20F60GAXKMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

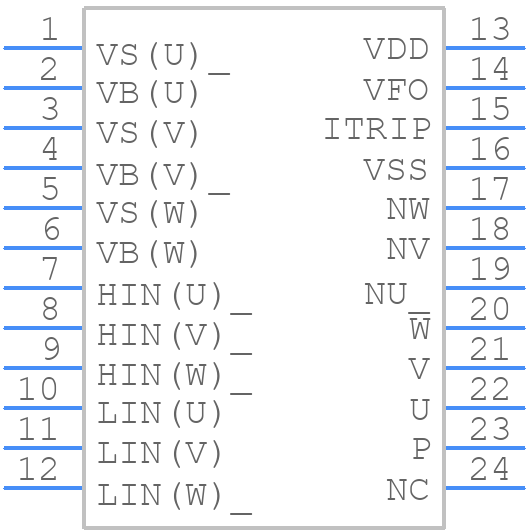

Symbol
IGCM20F60GAXKMA1 - Infineon - PCB symbol
click to zoom

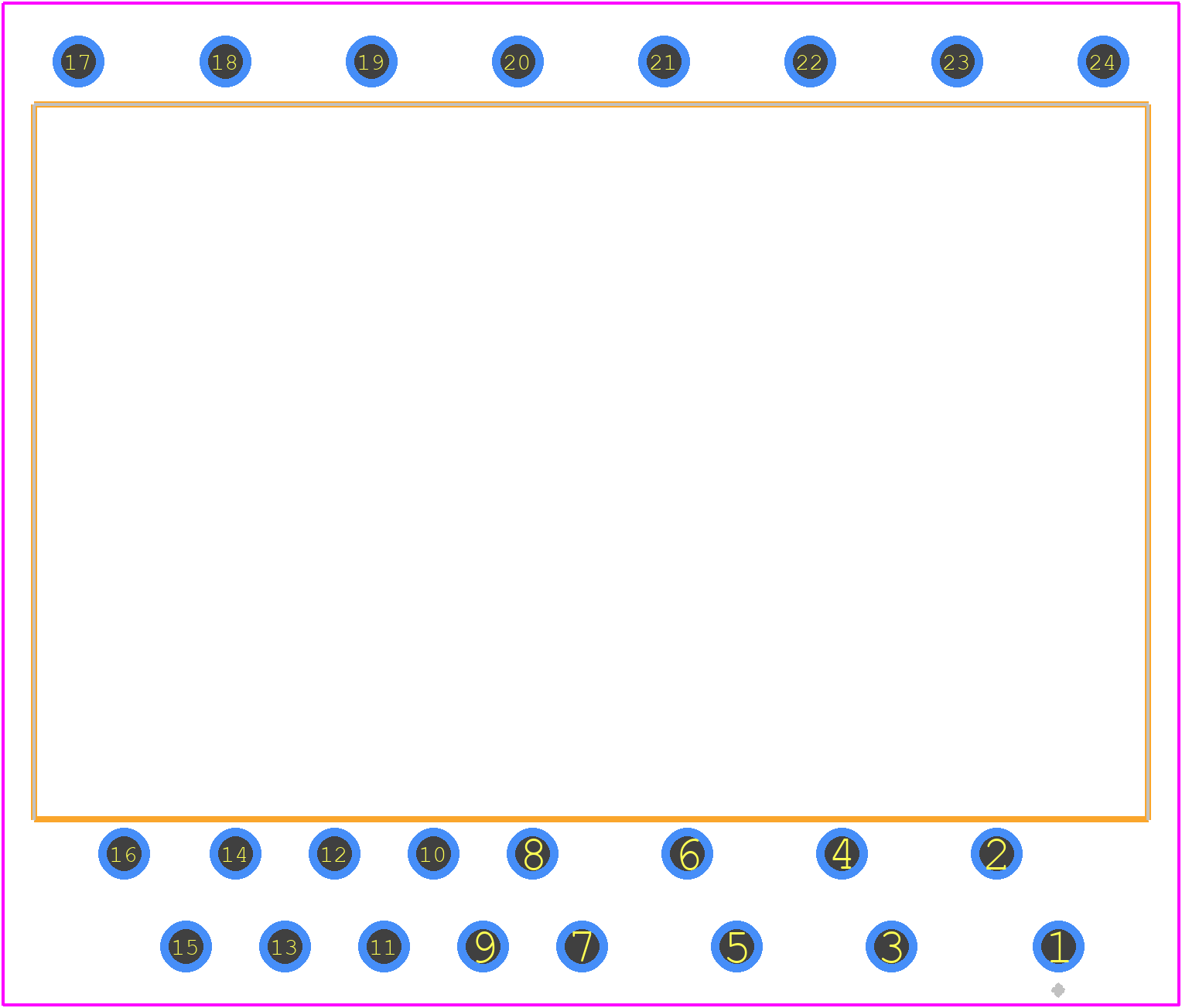

PCB Footprints
IGCM20F60GAXKMA1 - Infineon PCB footprint - Other - Other - IGCM20F60GAXKMA1-1
click to zoom
3D Models
IGCM20F60GAXKMA1 - Infineon - 3D model - Other - IGCM20F60GAXKMA1-1
click to zoom

IGCM20F60GAXKMA1 Details

  • Manufacturer Part Number:

    IGCM20F60GAXKMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24

  • Country Of Origin:

    Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDMA-T24

  • Length:

    36 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    45 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    5.6 mm

  • Supply Current-Max (Isup):

    0.9 mA

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    14 V

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    21 mm

IGCM20F60GAXKMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the IGCM20F60GAXKMA1 is 150°C, as specified in the datasheet.
  • Proper thermal management of the IGCM20F60GAXKMA1 can be ensured by providing a good thermal interface between the module and the heat sink, using a thermal interface material, and ensuring good airflow around the heat sink.
  • The recommended gate resistor value for the IGCM20F60GAXKMA1 is typically in the range of 10 ohms to 20 ohms, depending on the specific application and switching frequency.
  • Yes, the IGCM20F60GAXKMA1 can be used in a parallel configuration, but it requires careful consideration of the current sharing and thermal management between the parallel modules.
  • The maximum allowable voltage transient for the IGCM20F60GAXKMA1 is specified in the datasheet as 1200 V, but it's recommended to limit the voltage transient to 1000 V to ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IGCM20F60GAXKMA1 Overview

Use the download button to access the IGCM20F60GAXKMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IGCM2, or try a keyword search, such as Motion Control Electronics
