Part Image

IGO60R070D1 - Infineon

Description: Infineon GAN HV

Download IGO60R070D1 Model

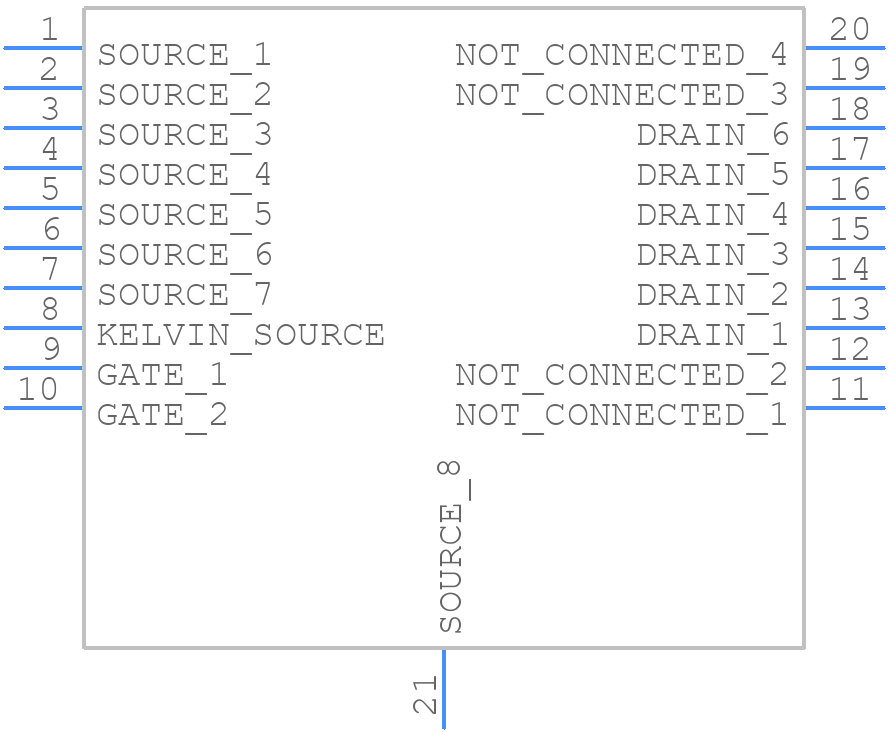

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

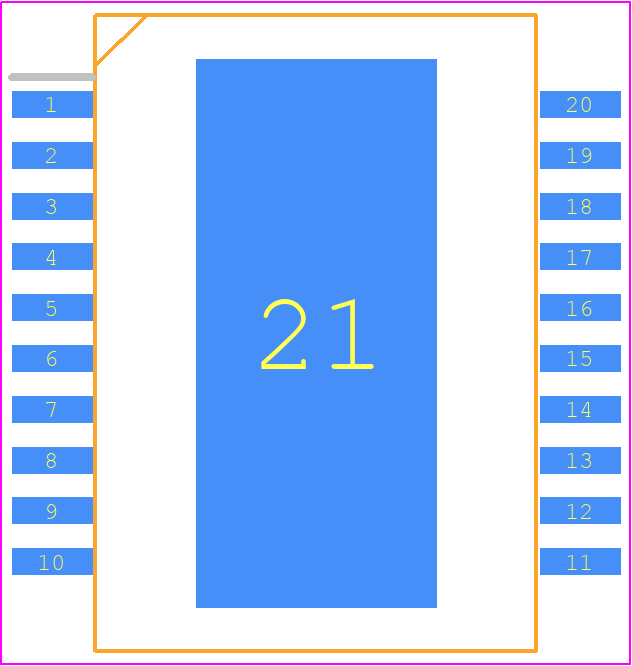

IGO60R070D1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - IGO60R070D1AUMA1-1
click to zoom
3D Models
IGO60R070D1 - Infineon  - 3D model - Small Outline Packages - IGO60R070D1AUMA1-1
click to zoom

IGO60R070D1 Details

  • Manufacturer Part Number:

    IGO60R070D1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DSO-20-85, 20 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Date Of Intro:

    2018-11-06

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Case Connection:

    SOURCE

  • Configuration:

    SINGLE

  • DS Breakdown Voltage-Min:

    800 V

  • Drain Current-Max (ID):

    31 A

  • Drain-source On Resistance-Max:

    0.07 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    0.3 pF

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Elements:

    1

  • Number of Terminals:

    20

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    125 W

  • Pulsed Drain Current-Max (IDM):

    60 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IGO60R070D1 Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) for IGO60R070D1 is 150°C, but it's recommended to operate at a maximum of 125°C for reliable and long-term operation.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of ≤ 1.5 K/W, ensuring good thermal contact between the device and heat sink, and providing adequate airflow.
  • The recommended gate resistance (Rg) for IGO60R070D1 is ≤ 10 Ω to ensure proper switching performance and minimize oscillations.
  • Yes, IGO60R070D1 can be used in a parallel configuration, but it's essential to ensure that the devices are properly synchronized and matched to avoid uneven current sharing and potential oscillations.
  • The maximum allowed dv/dt for IGO60R070D1 is 10 kV/μs, but it's recommended to limit it to 5 kV/μs to ensure reliable operation and minimize the risk of failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IGO60R070D1 Overview

Use the download button to access the IGO60R070D1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IGO60, or try a keyword search, such as Power Field-Effect Transistors
