The maximum operating temperature of the IGT60R070D1ATMA1 is 150°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -40°C to 125°C for optimal performance and reliability.
To ensure proper thermal management, it's essential to provide adequate heat sinking, ensure good thermal interface material (TIM) between the module and heat sink, and maintain a low thermal resistance. Additionally, consider using a heat sink with a high thermal conductivity and a sufficient surface area to dissipate heat efficiently.
The recommended gate resistor value for the IGT60R070D1ATMA1 is typically in the range of 10 Ω to 20 Ω. However, the optimal value may vary depending on the specific application, switching frequency, and gate driver characteristics. It's recommended to consult the datasheet and application notes for more information.
Yes, the IGT60R070D1ATMA1 can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the modules are properly matched, and the gate drive signals are synchronized to prevent uneven current sharing and potential oscillations.
The maximum allowable voltage transient for the IGT60R070D1ATMA1 is specified as 1200 V for a duration of 100 μs. However, it's recommended to limit the voltage transients to minimize the risk of device damage or degradation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IGT60R070D1ATMA1 Overview

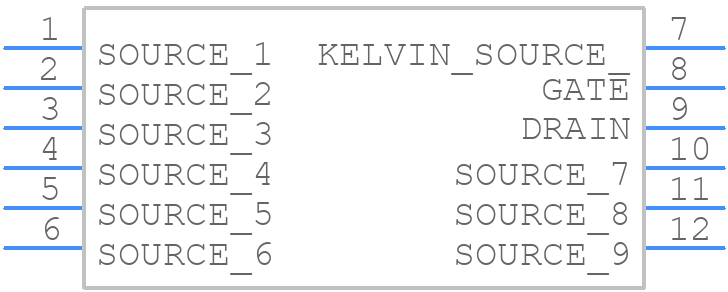

Use the download button to access the IGT60R070D1ATMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IGT60,
or try a keyword search, such as Power Field-Effect Transistors
