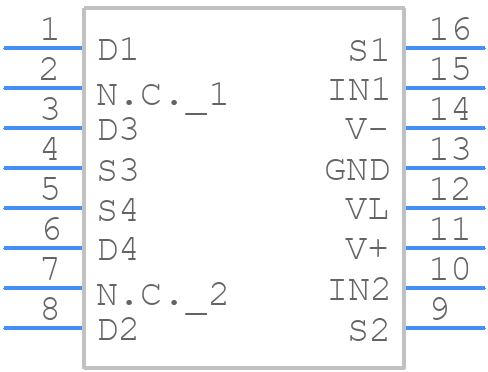

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for IH5051MJE/883B
- Part Number IH5051MJE/883B
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Connector
- Package Category Ceramic Dual-In-Line Packages
- Footprint Name Ceramic Dual-In-Line Packages - 16 CERDIP
- Released Date Jul 24, 2025
- Last Modified Date Jul 24, 2025 5:07 AM UTC
- Pinout / Pin List Click Here (Member Only)
IH5051MJE/883B Details
-
Manufacturer Part Number:
IH5051MJE/883B
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
No
-
Part Life Cycle Code:
Active
-
Part Package Code:
16-CERDIP-300_MIL
-
Package Description:
DIP, DIP16,.3
-
Pin Count:
16
-
Manufacturer Package Code:
16-CERDIP-300_MIL
-
Reach Compliance Code:
Not Compliant
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
1999-05-28
IH5051MJE/883B Frequently Asked Questions (FAQs)
-
A good PCB layout for the IH5051MJE/883B involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
-
To ensure the IH5051MJE/883B operates within its specified temperature range, provide adequate heat sinking, avoid overheating, and keep the device away from heat sources. The device's thermal pad should be connected to a heat sink or a copper plane on the PCB.
-
The IH5051MJE/883B has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and avoid touching the device's pins or exposed internal components.
-
The IH5051MJE/883B is designed to meet the requirements of MIL-PRF-38535, which includes radiation hardness. However, it's essential to consult with Analog Devices Inc and perform additional testing to ensure the device meets the specific radiation requirements of your application.
-
To troubleshoot common issues with the IH5051MJE/883B, start by checking the PCB layout, ensuring that the input and output traces are short and separate, and that decoupling capacitors are properly placed. Also, verify that the device is operated within its specified voltage and current ranges, and that the input signals are within the recommended amplitude and frequency ranges.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
IH5051MJE/883B Overview
Use the download button to access the IH5051MJE/883B schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like IH505,
or try a keyword search, such as Multiplexers or Switches
