IHDM1107BBEV2R7M30 footprint, schematic symbol and 3D model by Vishay

Symbol

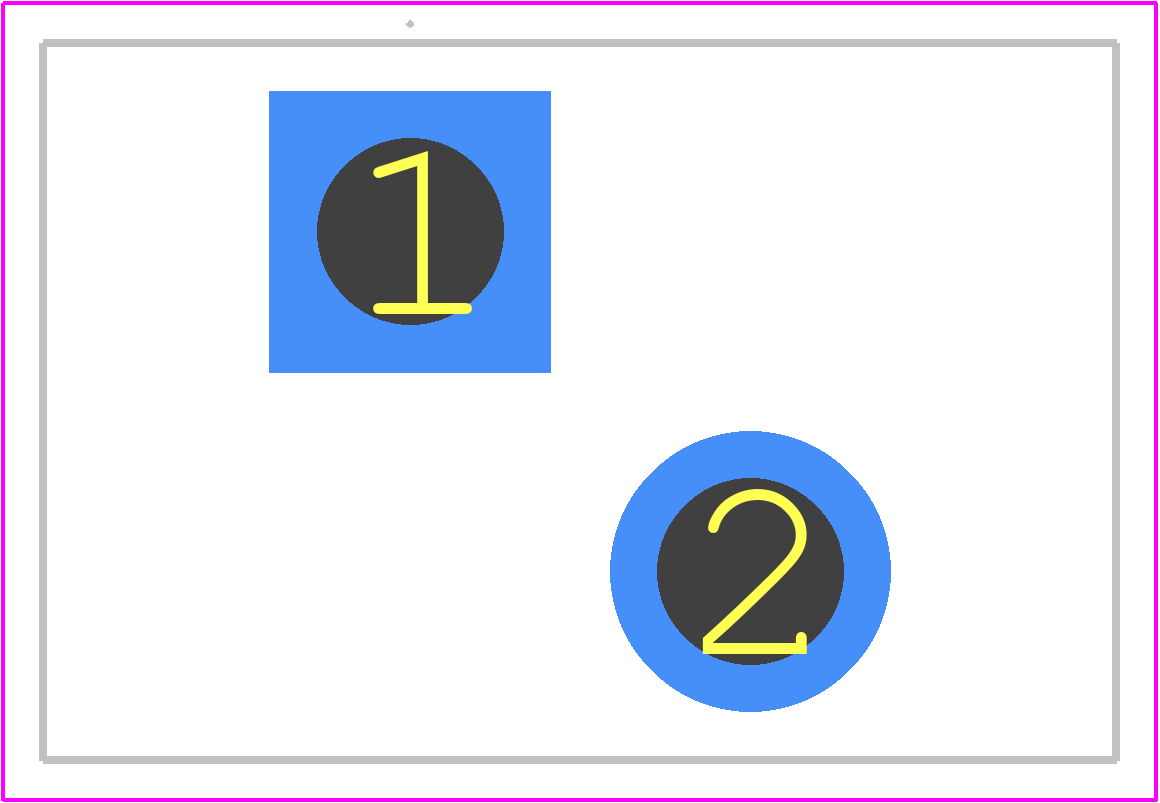

PCB Footprints

3D Models

IHDM1107BBEV2R7M30 Details

A symmetrical layout with a solid ground plane and a small loop area is recommended to minimize radiation and ensure optimal performance.
Ensure good airflow, use a thermal pad or heat sink if necessary, and follow the recommended derating curves for temperature and current.
The SRF is not explicitly stated in the datasheet, but it can be estimated using the inductance and capacitance values. For the IHDM1107BBEV2R7M30, the SRF is approximately 150-200 MHz.
While the IHDM1107BBEV2R7M30 is suitable for high-frequency applications, its performance may degrade above 100 MHz. Consider using a more specialized high-frequency inductor for applications above 100 MHz.
Consider factors such as inductance value, current rating, DC resistance, and physical size. Also, consult the datasheet and application notes to ensure the inductor meets your specific requirements.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the IHDM1107BBEV2R7M30 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IHDM1, or try a keyword search, such as Fixed Inductors
