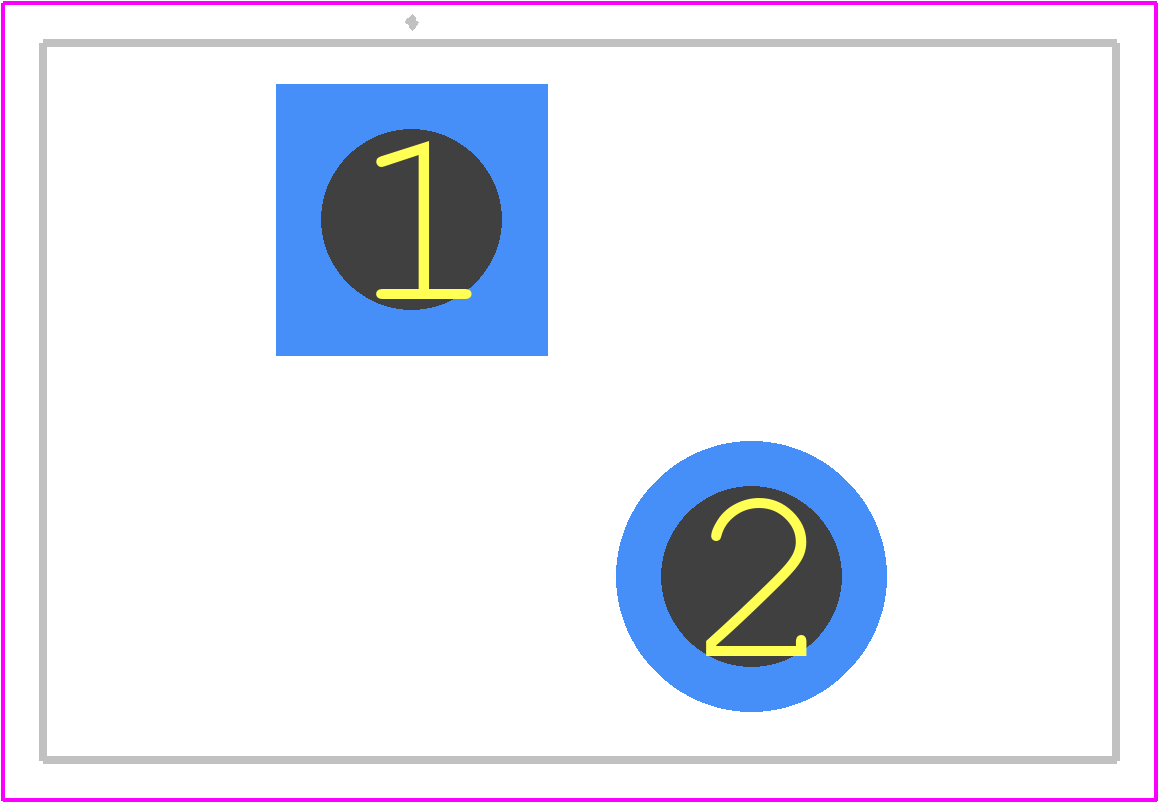

IHDM1107BBEV4R3M30 - Vishay

IHDM1107BBEV4R3M30 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance?
  A symmetrical layout with a solid ground plane and minimal signal traces under the inductor is recommended to reduce electromagnetic interference (EMI) and ensure optimal performance.
• How do I handle the inductor's thermal considerations?
  Ensure good airflow around the inductor, and consider using a thermal pad or heat sink if the operating temperature exceeds 125°C. Also, follow the recommended derating curves for temperature and current.
• What is the inductor's self-resonant frequency (SRF)?
  The SRF is not explicitly stated in the datasheet, but it can be estimated using the inductance value and the parasitic capacitance. For the IHDM1107BBEV4R3M30, the SRF is approximately 150-200 MHz.
• Can I use this inductor in a high-reliability or aerospace application?
  While the IHDM1107BBEV4R3M30 is a high-quality inductor, it may not meet the specific requirements of high-reliability or aerospace applications. Consult Vishay's documentation and sales team to determine the suitability of this component for your specific use case.
• How do I select the correct inductor for my specific application?
  Consider factors such as the operating frequency, current, and voltage, as well as the desired inductance value, DC resistance, and physical size. Consult the datasheet and application notes to ensure the IHDM1107BBEV4R3M30 meets your application's requirements.
