The recommended land pattern for the IHDM1107BBEV5R6M20 can be found in the Vishay Intertechnologies' land pattern recommendation document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements for optimal assembly and reliability.
The IHDM1107BBEV5R6M20 has a high power density, and proper thermal management is crucial to ensure reliable operation. Engineers should consider using thermal vias, thermal pads, or heat sinks to dissipate heat. Additionally, they should ensure good airflow around the component and avoid blocking the airflow with other components or obstacles.
The maximum operating temperature range for the IHDM1107BBEV5R6M20 is -55°C to +150°C, as specified in the datasheet. However, it's essential to note that the component's performance and reliability may degrade at extreme temperatures, and engineers should consider derating the component's specifications accordingly.
The IHDM1107BBEV5R6M20 is designed to withstand moderate vibration levels, but it's essential to evaluate the component's suitability for high-vibration environments. Engineers should consider the component's mechanical stress limits, solder joint reliability, and potential resonance frequencies to ensure the component's reliability and performance in such environments.
To ensure proper soldering and assembly of the IHDM1107BBEV5R6M20, engineers should follow the recommended soldering profile, use a solder with a high melting point, and ensure the component is properly aligned and seated on the PCB. Additionally, they should inspect the solder joints for defects, such as cold solder joints, and ensure the component is properly cleaned and dried after assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IHDM1107BBEV5R6M20 Overview

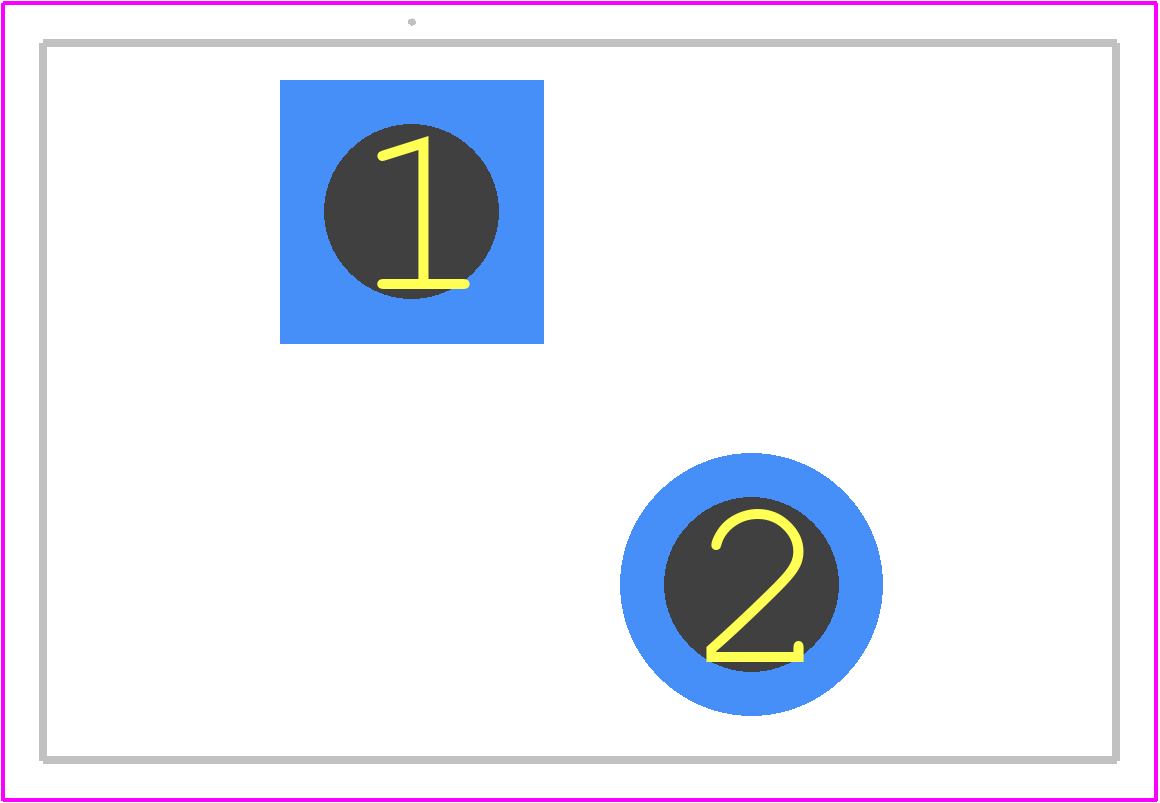

Use the download button to access the IHDM1107BBEV5R6M20 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like IHDM1,
or try a keyword search, such as Fixed Inductors
