IHDM1107BBEV6R2M30 - Vishay

Description: High Current, Through-Hole Inductor, Edge-Wound Series

Download IHDM1107BBEV6R2M30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

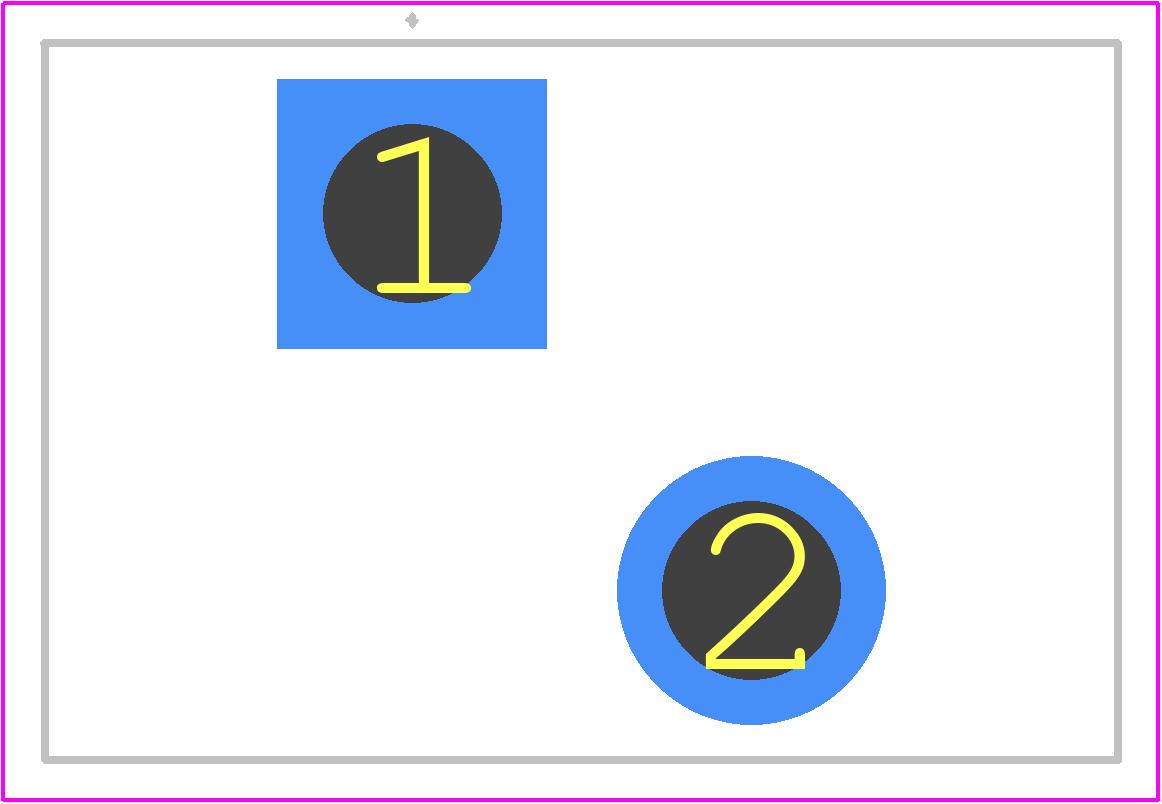

IHDM1107BBEV6R2M30 - Vishay PCB footprint - Other - Other - IHDM1107BBEV6R2M30-6
click to zoom
3D Models
IHDM1107BBEV6R2M30 - Vishay  - 3D model - Other - IHDM1107BBEV6R2M30-6
click to zoom

IHDM1107BBEV6R2M30 Details

  • Manufacturer Part Number:

    IHDM1107BBEV6R2M30

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Construction:

    Rectangular

  • Core Material:

    IRON ALLOY

  • DC Resistance:

    0.0013 Ω

  • Inductance-Nom (L):

    6.2 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Length:

    4.15 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    180 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    22.4 mm

  • Package Length:

    26.8 mm

  • Package Style:

    Radial

  • Package Width:

    17.9 mm

  • Rated Current-Max:

    56 A

  • Self Resonance Frequency:

    25 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    FLAT

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

IHDM1107BBEV6R2M30 Frequently Asked Questions (FAQs)

  • Vishay recommends a PCB layout with a solid copper plane underneath the device to improve thermal dissipation. A minimum of 2 oz copper thickness is recommended, and the copper plane should be connected to a heat sink or a thermal pad.
  • To ensure reliable soldering, Vishay recommends using a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point of 217°C to 220°C. The component should be soldered within 3 seconds to 5 seconds, and the soldering iron should be applied to the terminal for no more than 2 seconds.
  • Vishay recommends derating the maximum voltage by 10% to 15% to ensure reliable operation and to prevent premature failure. This means that if the maximum rated voltage is 100V, the derated voltage should be 85V to 90V.
  • While the IHDM1107BBEV6R2M30 is designed for high-frequency applications, its performance may degrade above 100 kHz. Vishay recommends using a different device or consulting with their application engineers for high-frequency applications above 100 kHz.
  • Vishay recommends storing the IHDM1107BBEV6R2M30 in its original packaging or in a similar ESD-protective package. The device should be handled with ESD-protective materials, and it should not be exposed to temperatures above 40°C or humidity above 60% during storage and shipping.
