IHLP5050EZER820M5A - Vishay

Description: Fixed Inductors 82uH 20% High Temp AEC-Q200

Download IHLP5050EZER820M5A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IHLP5050EZER820M5A - Vishay - PCB symbol
click to zoom

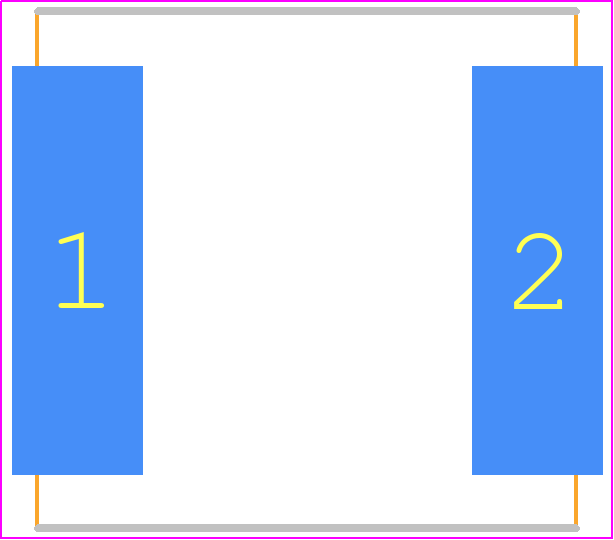

PCB Footprints
IHLP5050EZER820M5A - Vishay PCB footprint - Inductors Precision Moulded - Inductors Precision Moulded - ER-2021
click to zoom
3D Models
IHLP5050EZER820M5A - Vishay - 3D model - Inductors Precision Moulded - ER-2021
click to zoom

IHLP5050EZER820M5A Details

  • Manufacturer Part Number:

    IHLP5050EZER820M5A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Case/Size Code:

    5150

  • Construction:

    Rectangular

  • Core Material:

    COMPOSITE

  • DC Resistance:

    0.201 Ω

  • Inductance-Nom (L):

    82 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    5 mm

  • Package Length:

    12.9 mm

  • Package Style:

    SMT

  • Package Width:

    12.751 mm

  • Packing Method:

    TR, 13 Inch

  • Rated Current-Max:

    3 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    2.9 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

IHLP5050EZER820M5A Frequently Asked Questions (FAQs)

  • The recommended land pattern for IHLP5050EZER820M5A is a rectangular pad with dimensions of 5.5mm x 5.5mm, with a non-solder mask defined (NSMD) pad and a solder mask opening of 4.5mm x 4.5mm.
  • The IHLP5050EZER820M5A is rated for operation up to 125°C, but derating is required for temperatures above 80°C. Consult the datasheet for specific derating guidelines.
  • To minimize the impact of the inductor's magnetic field, keep the inductor at least 5mm away from other components, and consider using a shielded inductor or a mu-metal shield around the inductor.
  • The SRF of the IHLP5050EZER820M5A is approximately 150 MHz, but this value can vary depending on the specific application and PCB layout.
  • The IHLP5050EZER820M5A is rated for a maximum current of 8.2A, but the actual current handling capability depends on the specific application, PCB layout, and thermal management. Consult the datasheet and perform thermal analysis to ensure safe operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IHLP5050EZER820M5A Overview

Use the download button to access the IHLP5050EZER820M5A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IHLP5, or try a keyword search, such as Fixed Inductors
