IHLP6767GZER1R5M01 - Vishay

Description: Vishay IHLP6767GZ-01 Series Shielded Wire-wound SMD Inductor 1.5 μH ±20% 65A Idc

Download IHLP6767GZER1R5M01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IHLP6767GZER1R5M01 - Vishay - PCB symbol
click to zoom
PCB Footprints

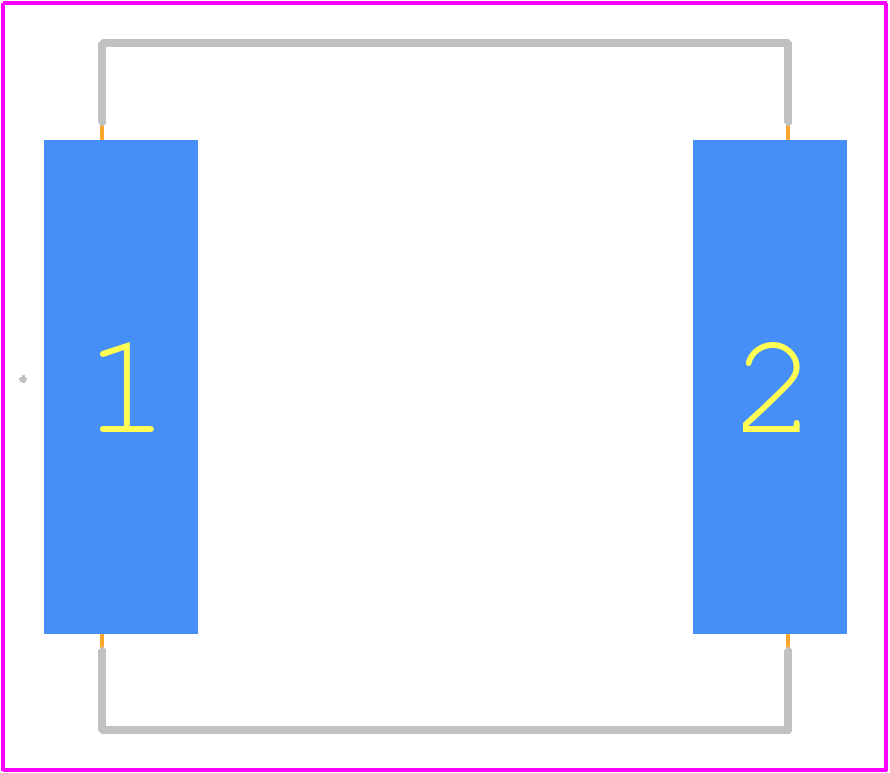

IHLP6767GZER1R5M01 - Vishay PCB footprint - Other - Other - IHLP6767GZER1R5M01-1
click to zoom
3D Models
IHLP6767GZER1R5M01 - Vishay - 3D model - Other - IHLP6767GZER1R5M01-1
click to zoom

IHLP6767GZER1R5M01 Details

  • Manufacturer Part Number:

    IHLP6767GZER1R5M01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Case/Size Code:

    6767

  • Construction:

    Rectangular

  • Core Material:

    COMPOSITE

  • DC Resistance:

    0.00188 Ω

  • Inductance-Nom (L):

    1.5 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    7 mm

  • Package Length:

    17.15 mm

  • Package Style:

    SMT

  • Package Width:

    17.15 mm

  • Packing Method:

    TR, 13 Inch

  • Rated Current-Max:

    42 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

IHLP6767GZER1R5M01 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the IHLP6767GZER1R5M01 is a rectangular pad with a size of 3.3 mm x 2.5 mm, with a non-solder mask defined (NSMD) pad shape.
  • The IHLP6767GZER1R5M01 has a high current rating, so it's essential to ensure good thermal management. This can be achieved by providing a sufficient copper area on the PCB, using thermal vias, and applying a thermal interface material (TIM) between the inductor and the PCB.
  • The maximum operating temperature range for the IHLP6767GZER1R5M01 is -40°C to +125°C, with a maximum storage temperature range of -40°C to +150°C.
  • Yes, the IHLP6767GZER1R5M01 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The equivalent series resistance (ESR) of the IHLP6767GZER1R5M01 is 1.5 mohms maximum at 100 kHz, 20°C.
